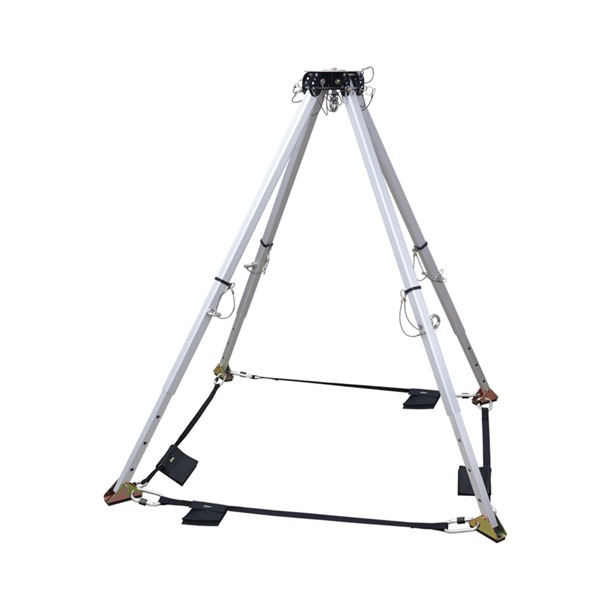

Quadpod For Cliff Top or Mountain Rescue By Kratos

Product Information

The Quadpod is a highly adaptable and lightweight rescue tripod designed specifically for cliff-edge, mountain, and confined space rescue operations. Its four independently adjustable telescopic legs provide maximum flexibility and stability across varied terrain, making it an essential tool for technical rescue teams.

Product Features

• Multi-Position Design: Equipped with four independently adjustable telescopic legs, offering a height range from 1.21 to 1.75 metres—ideal for sloped or uneven surfaces such as cliffs or mountain terrain.

• Wide Wheelbase: Adjustable wheelbase from 2.30 to 3.20 metres for increased operational versatility.

• High Load Capacity: Supports a maximum load of 500 kg directly under the head, suitable for two users.

• Robust Construction:

  • Aluminium alloy cast head and lightweight aluminium legs for durability and portability

  • Steel support shoes with rubber soles ensure increased friction and enhanced stability on various surfaces

• Attachment Points:

  • One auxiliary eye bolt under the head

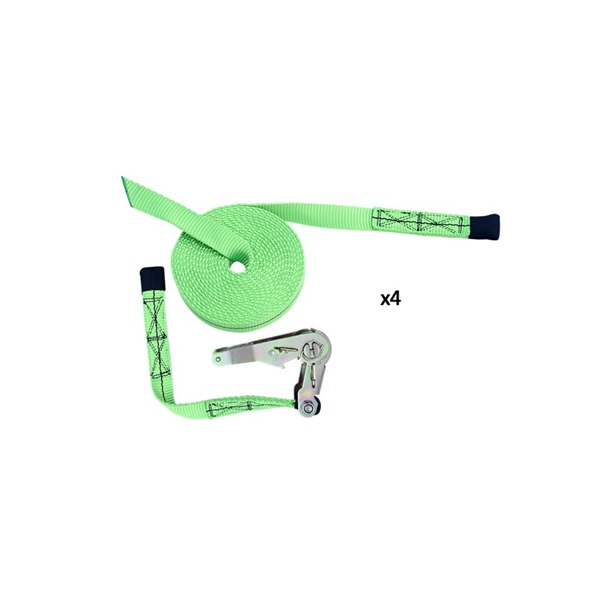

  • Additional eye bolts on each leg for secure lashing (includes 4 lashing webbings)

• Strong and Certified:

  • Static strength of 13 kN (as per EN 795)

  • Minimum breaking strength of 25 kN

• Compliance: Certified to EN 795:2012 Type B, TS 16415:2013 Type B, and Machinery Directive

• Portable: Supplied with a transport bag for easy storage and transport

• Weight: 15.56 kg

• Produced & Manufactured in France
