Anchor With Carol Material Lifting Winch | Tractel Davimast
£2,801.34 inc VAT
Product Purposes
This height safety product is specifically designed for use in confined spaces such as wells and drains.
Features
Brand: | Tractel |
CE/UKCA Marked: | Yes |
Certified to: | EN 795:2012 |
Country of Origin: | Luxembourg |
Material: | Aluminium |
Max Work Load: | 250Kg |
Maximum User Weight: | 150kg |
Product Colour: | Blue |
Product Colour: | Steel |
Product Information

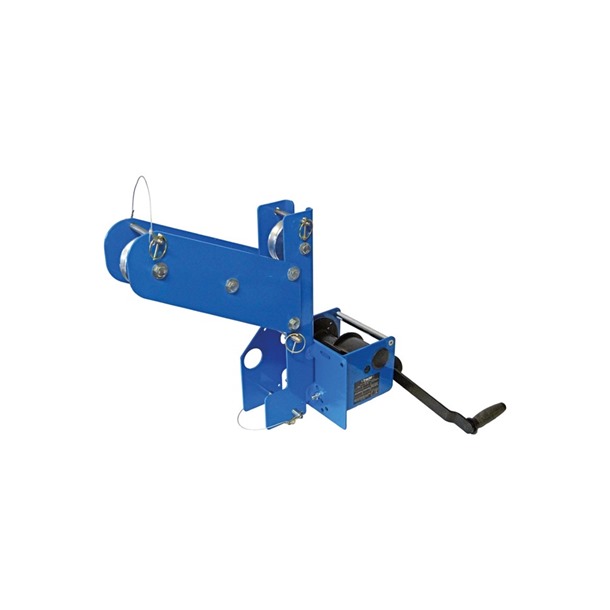

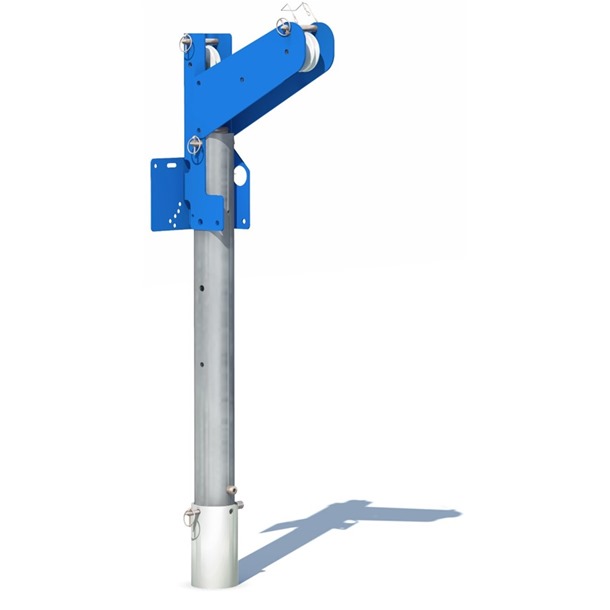

The Davimast is a compact and portable high anchor point system, specifically designed for safe access to confined spaces such as silos, sewers, terraces, and other elevated or restricted environments. This version of the Davimast is supplied with a bracket and either a caRol TS 20mtr or 30mtr Material Lifting Winch, rated for lifting up to 250 kg—making it an ideal choice for material handling tasks in confined workspaces.
Thanks to its lightweight design and tool-free assembly, the Davimast can be quickly deployed without the need for specialized equipment or installation tools. It comes with a floor-mounted adapter as standard for secure positioning.

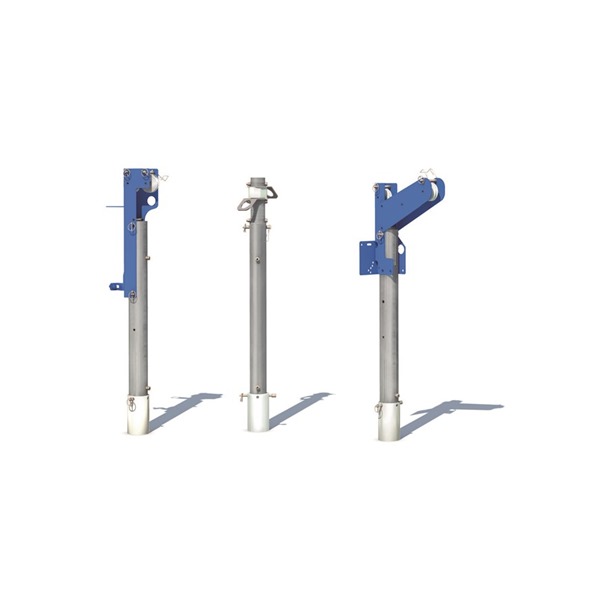

The unit’s modular configuration allows users to interchange brackets easily. The included caRol winch and bracket can be removed and replaced with either a Blocfor device for fall arrest and recovery, or a 360° rotating anchor point for dynamic anchorage, making the Davimast a truly versatile safety system.
Product Features
- Designed for use in confined space environments such as silos, sewers, and terraces
- Supplied with a caRol TS 20mtr or 30mtr Material Lifting Winch (rated to 250kg)
- Modular system – easily switch between lifting winch, fall protection, or anchor head
- Optional brackets support Blocfor fall arrest devices and 360° rotating anchor points
- Quick setup with no tools required for assembly

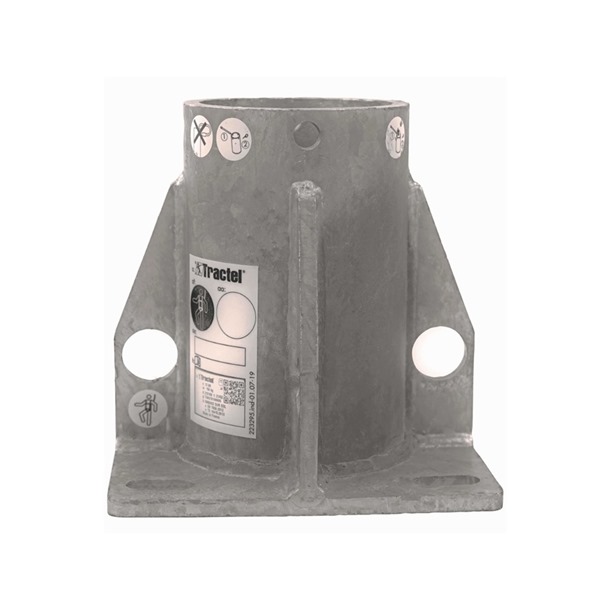

- Supplied with a mounted floor adapter for secure base installation
- Lightweight and portable, ideal for mobile work teams
- Lifting capacity: 250kg
- Fully compliant with relevant safety standards for confined space access and material handling
Product Specification
- Material: Aluminium & Stainless Steel
- Lifting Capacity: 250kg
- caRol TS 20mtr Material Lifting Winch
- caRol TS 30mtr Material Lifting Winch
- Conforms to EN Standard: EN 795:2012
- Produced & Manufactured in Luxembourg
Available Optional Accessories(Please contact us for pricing):
- Wall Mount Adapter – For installation on vertical surfaces
- Flush Floor Adapter – For mounting flush with surface levels
- Clearance Mural Adapter – Adds distance from walls or obstructions
- 360° Rotating Anchor Point – For fall arrest anchorage with full mobility
- Blocfor 20R Recovery Winch with Bracket – Fall arrest with 20m recovery cable
- Blocfor 30R Recovery Winch with Bracket – Fall arrest with extended 30m recovery cable
