A-Frame Deadweight Anchor System With a Test Weight Trolley By G-Force

Product Information

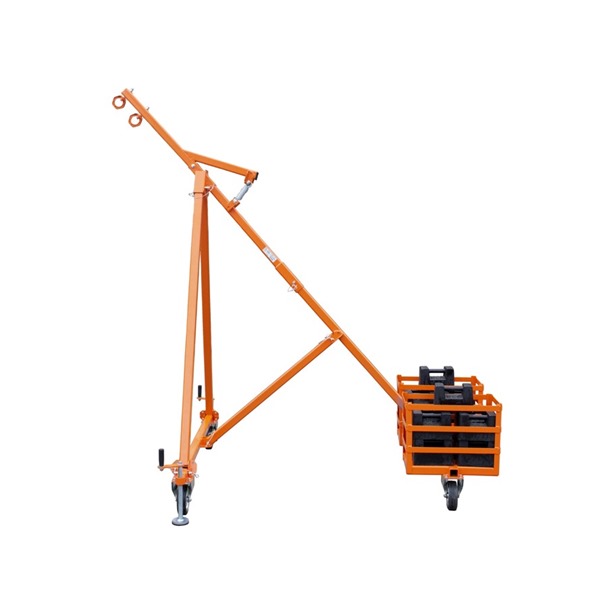

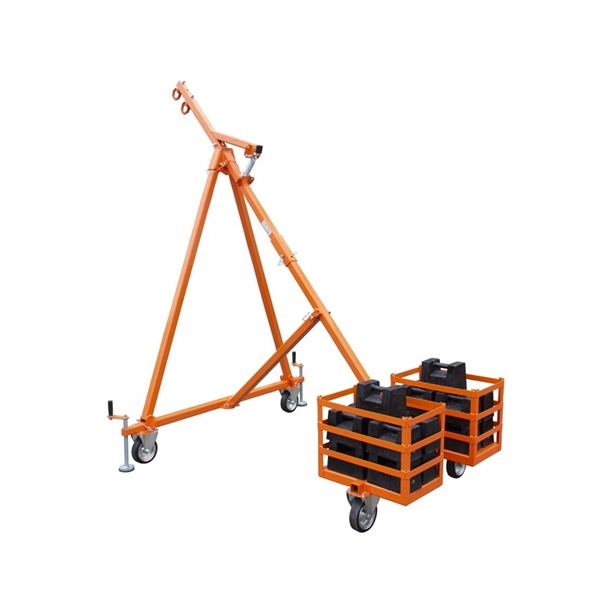

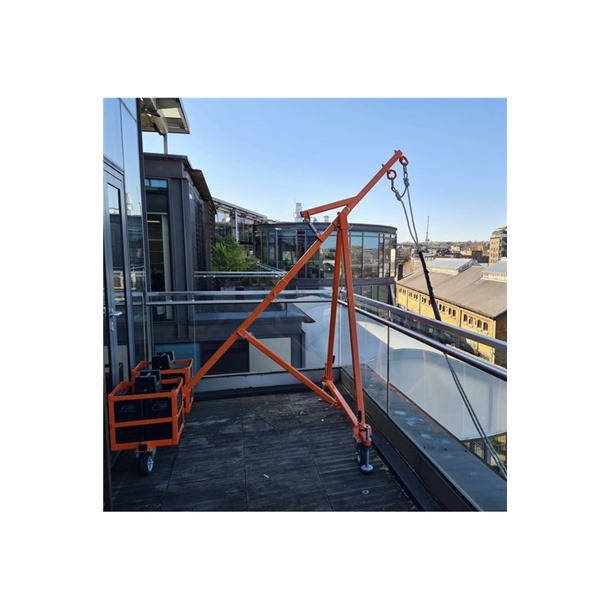

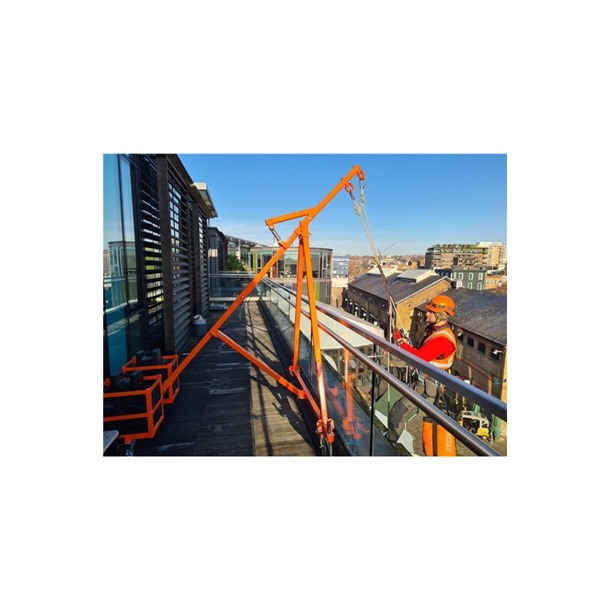

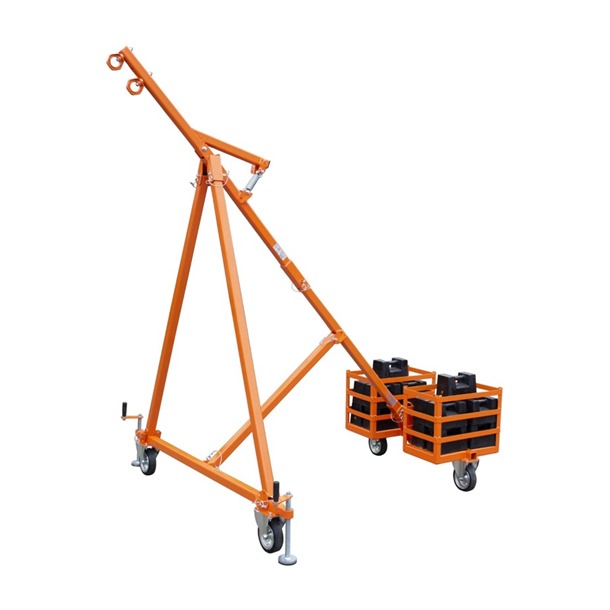

The DW200 is a robust, cantilevered anchor system specifically designed for fall arrest and rope access applications on flat surfaces. Its innovative design features an adjustable A-Frame mounted on fixed-position castor wheels, allowing the system to be repositioned laterally without full disassembly—saving time and increasing on-site efficiency.

With integrated screw-down parking jacks to eliminate unwanted movement and a built-in energy absorber for enhanced safety, the DW200 is ideal for high-frequency access work. The system is supplied with a Test Weight Trolley for added functionality and compliance.

Product Features

• Cantilevered A-Frame for use in fall arrest and rope access scenarios

• Lateral mobility via fixed castor wheels — reduces need for constant disassembly and repositioning

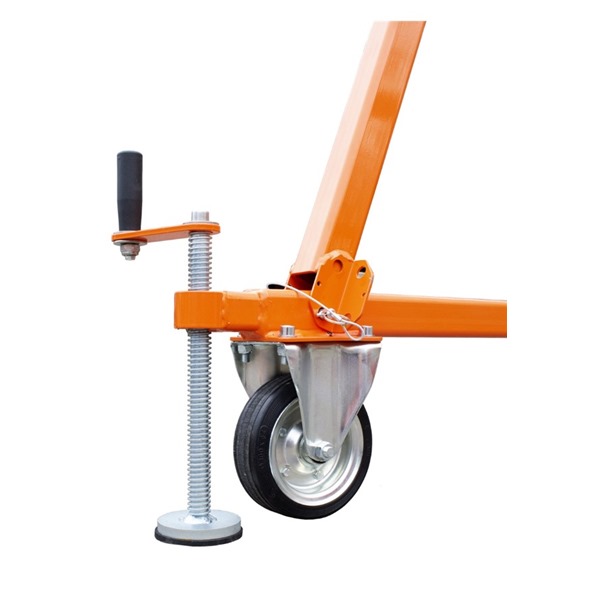

• Screw-down parking jacks to prevent unwanted movement during use

• Integrated energy absorber enhances safety during fall arrest

• Supplied with test weight trolley for use and verification

• Designed for use on flat, stable surfaces

Product Specifications

• Height of A-Frame: 2486 mm

• Width of Front Beam: 1766 mm

• Length: 2420 mm

• Weight (A-Frame & Trolley): 59.5 kg

• Fall Arrest Use:

  • Complies with EN795:2012 and CEN/TS 16415

  • Requires 16 x 20 kg counterweights (for 2 users)

• Rope Access Use:

  • Complies with IRATA ICOP (15kN requirement)

  • Requires 18 x 20 kg counterweights

• Standards Compliance:

  • EN795:2012 Type B

  • CEN/TS 16415:2013

  • IRATA ICOP (when used with correct counterweight configuration – see datasheet Table 2)
