Deadweight Anchoring Trolley By G-Force

Product Information

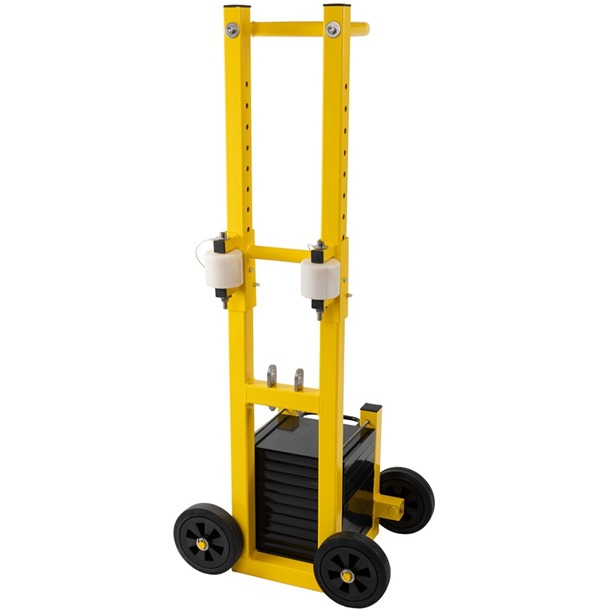

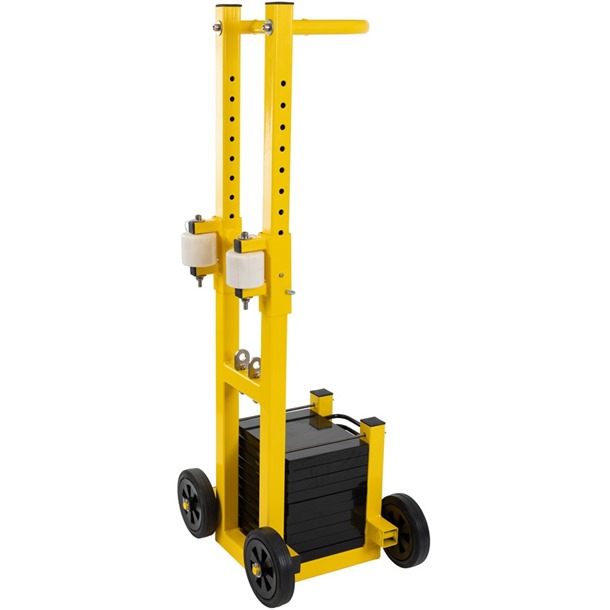

The DW100 Deadweight Trolley is a portable, adjustable-height anchor device designed for safe use behind structural handrails, balustrades, and parapet walls. Engineered for environments where space is limited, it features two independent anchor points, allowing for dual-user fall protection or single-user work in suspension.

Compact and easily transportable, the DW100 is quick to set up, store, and relocate, making it an ideal choice for temporary height safety operations.

Product Features

• Fully adjustable height for optimal positioning and compatibility with different structures

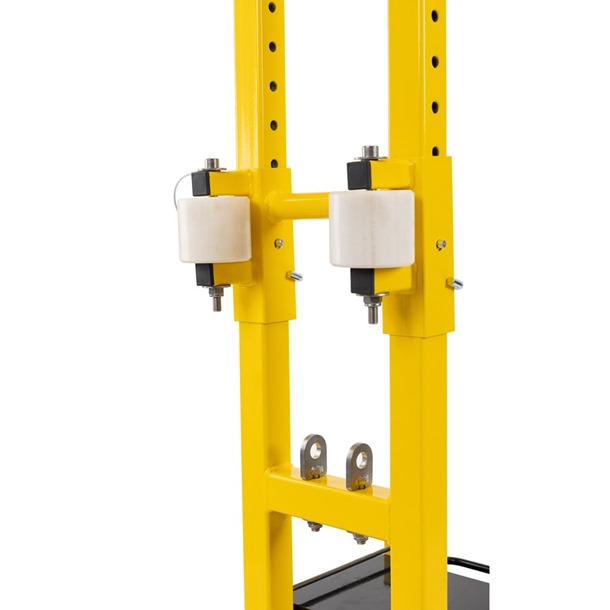

• Dual anchor points: suitable for 2 users (fall arrest) or 1 user (suspension work)

• Space-saving design – ideal for confined working areas

• Quick assembly and disassembly – enhances mobility and efficiency

• Designed for use behind parapets, handrails, and balustrades

Product Specifications

• Overall Dimensions: 1481 mm (L) x 610 mm (W) x 537 mm (H)
• Minimum Wall Height Required: 915 mm
• Weight of Trolley Frame: 28 kg

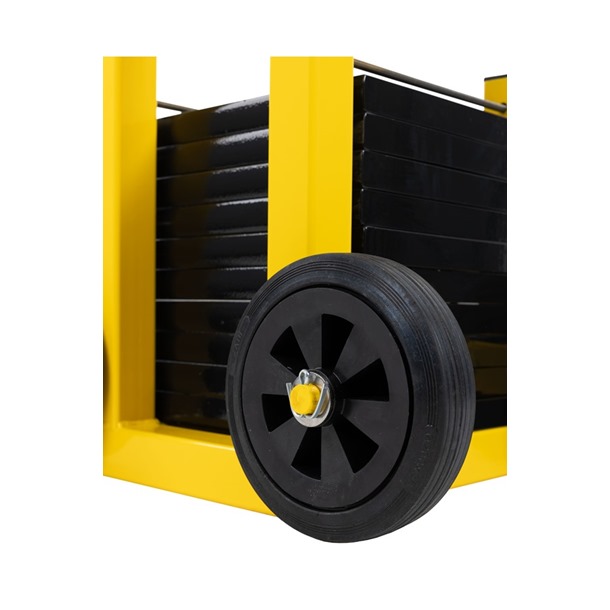

• Weight Discs: 10 pieces at 18 kg each
• Total System Weight: 215 kg
• Minimum Breaking Strength (MBS): 15 kN
• Standards Compliance:

• EN 795:2012 Type B

• CEN/TS 16415:2013 Type B
