G-Force Fall Arrest Long Shank Eyebolt

Product Information

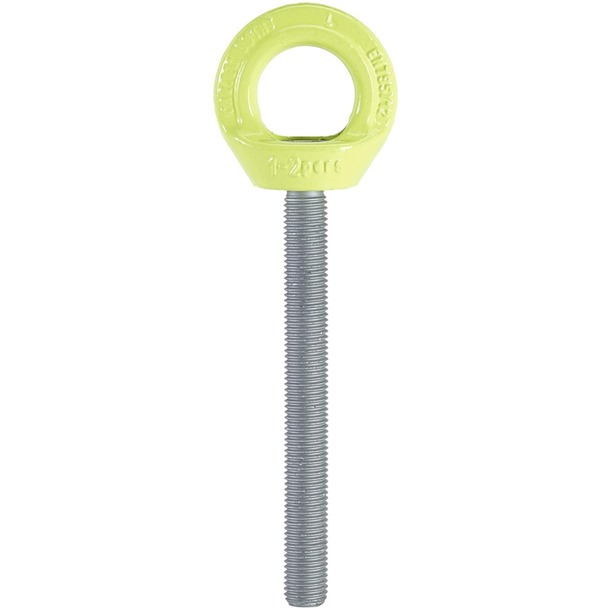

The M16 Fall Arrest Long Shank Eyebolt is a certified anchorage device designed to provide a secure connection point for harness-based fall protection systems. It allows operatives working at height to safely connect their harness via a compatible attachment system, reducing the risk of falls. Proper installation is essential—the threaded hole must be perpendicular to the supporting structure, and the eyebolt must be fully tightened against the surface for maximum effectiveness.

The long shank of this eyebolt allows it be used with thicker materials and for applications requiring a deeper reach.

Product Features

• Reliable Anchorage Point: Designed to safely secure a fall arrest system in high-risk work environments.
• High Safety Factor: Manufactured with a safety coefficient of 4 for enhanced performance under load.
• Eye: Powder-coated mild steel for corrosion resistance and longevity.
• Bolt: Galvanised mild steel for strength and protection in demanding conditions.
• Easy to Install: Must be positioned perpendicularly and fully tightened against the surface to ensure secure fitting.

Product Specifications

• Thread Size: M16
• Eye: Powder-coated mild steel
• Bolt: Galvanised mild steel
• Accredited To:
  • EN795:2012 (Anchor Devices – Type A)
  • CEN/TS 16145:2013 (Anchorage for personal protective equipment against falls from height)
• Complies with: EN361 (Full Body Harnesses) and EN362 (Connectors)
• Safety Coefficient: 4
• Installation Requirement: Threaded hole must be perpendicular to the support structure and fully tightened
