Dryad 13mm Pulley By C.A.M.P
£55.18 inc VAT
Product Purposes
This product is suuitbale for use in arboriculture applications.
Features
| Brand: | C.A.M.P |
| CE/UKCA Marked: | Yes |
| Certification Supplied: | Declaration of Conformity |
| Certified to: | EN 12278 |
| M.B.S: | 24kN |
| Material: | Aluminium |
| Product Colour: | Red |
| Suitable For: | 13mm Rope |
| Warranty: | 3 Years |
| Weight: | 170g |
Product Information

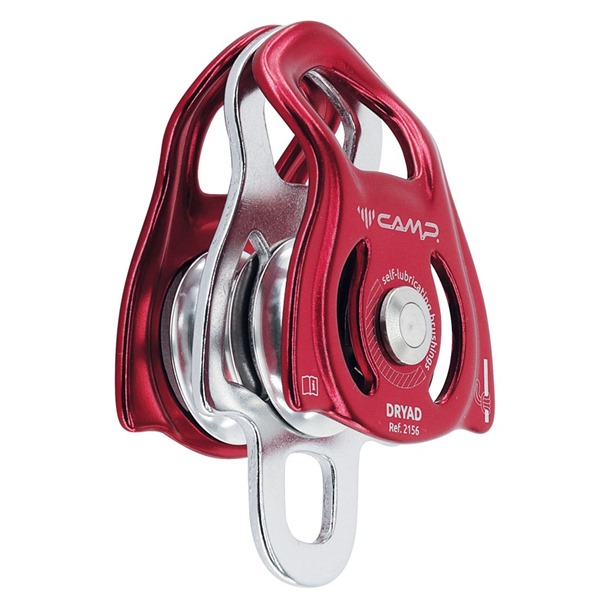

This compact double pulley is purpose-built for creating efficient, lightweight mechanical advantage systems. With dual sheaves and an integrated becket, it offers multiple connection points, allowing for complex yet compact rigging configurations. Ideal for low-load applications where space, weight, and flexibility are critical, this pulley excels in hauling systems, progress capture setups, and directional changes.

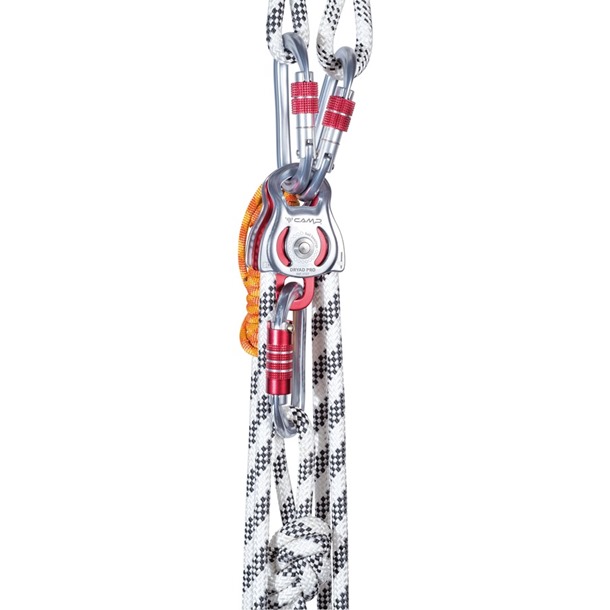

The main attachment point accommodates up to two karabiners for greater rigging versatility. The integrated becket at the bottom of the pulley simplifies connections to other components, enhancing the functionality of block-and-tackle systems. Prusik-minding capability on both sheaves ensures compatibility with progress capture knots.
Constructed from a high-strength aluminum alloy body and sheaves, with a stainless steel axle, the pulley is both lightweight and durable. Self-lubricating brass bushings provide smooth, efficient operation in low-speed, light-load environments, with a maximum efficiency of 80 percent.
Product Features

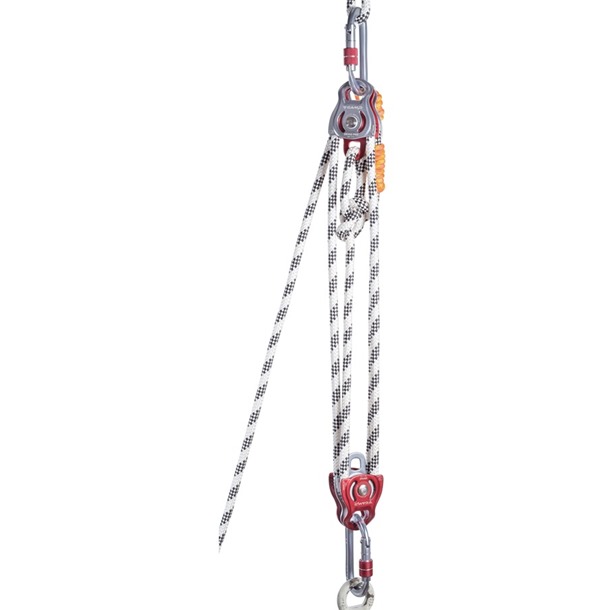

- Double sheave design enables the creation of compact and efficient mechanical advantage systems.
- Integrated becket allows for direct attachment of additional components to streamline complex rigging setups.
- Oversized main attachment point fits up to two karabiners for enhanced rigging flexibility.
- Prusik-minding capability on both sides of both sheaves allows for integration into progress capture configurations.
- Self-lubricating brass bushings ensure smooth performance under low-load, low-speed conditions.
- Lightweight yet durable construction ideal for field applications in rope access, arboriculture, and technical rescue.
Product Specifications
- Rope compatibility: Accepts ropes up to 13 mm in diameter.
- Sheave diameter: 28 mm inner sheave.
- Efficiency: 80 percent.
- Breaking load: 24 kN.
Construction materials:
Body and sheaves: Aluminum alloy.
Axle: Stainless steel.
Bushings: Brass (self-lubricating).
- Becket: Integrated bottom becket for additional rigging connections.
- Application: Optimized for light-duty systems; not intended for high-speed or high-load use.
