Heightec Vantage | 5:1 Locking Causualty Pulley in Sizes 1.5mtrs & 5mtrs

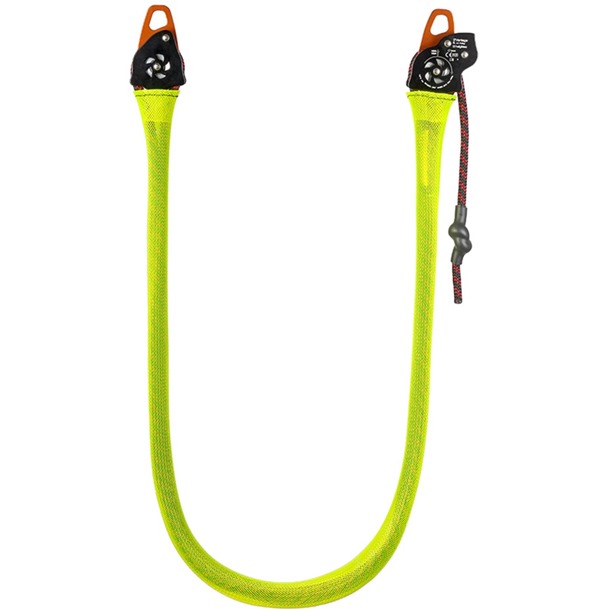

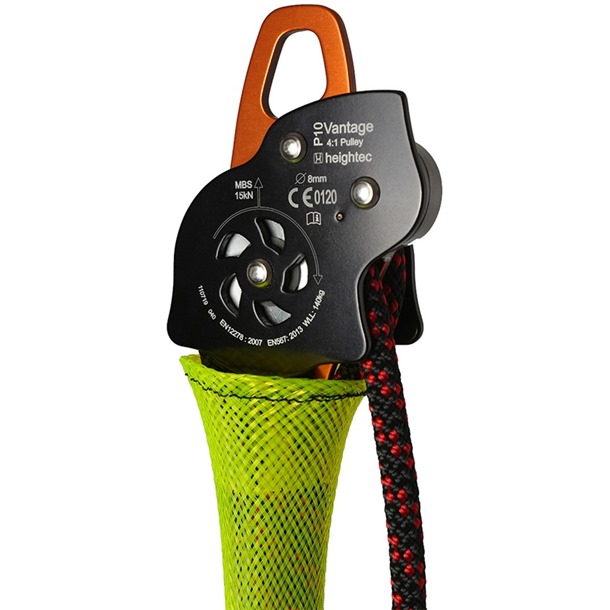

VANTAGE 5:1 Locking Casualty Pulley

Product Description

The VANTAGE 5:1 locking pulley is a compact, intuitive system designed for the safe and efficient transfer of a casualty onto a rescue system without the need to cut or disconnect existing attachments. Ideal for rope access, technical rescue, and tower rescue scenarios, the VANTAGE offers a mechanical advantage of 5:1, enabling rescuers to quickly and easily off-weight a suspended casualty.

All components are certified as Personal Protective Equipment (PPE) and function as a secure single attachment point, eliminating the need for additional rated connectors. The system is simple to deploy, with an automatic locking cam that provides efficient progress capture and prevents accidental release.

The VANTAGE is available in 1.5 m and 5 m lengths to suit different operational needs.

Product Features

• 5:1 Mechanical Advantage
  Provides significant lifting assistance, allowing rescuers to raise or off-weight a casualty with minimal effort. Ideal for vertical or tower rescue systems, including integration with the TOWERPACK system.

• Automatic Cam Locking
  The integrated cam locks automatically under load, ensuring safety during lifting or transfer. The cam does not lock open, which removes the risk of accidentally releasing the casualty.

• Tangle-Free Sheath Design
  The flexible, compressible sheath resists snagging and tangling, unlike mesh-covered systems. It also offers cut and abrasion resistance, ensuring performance in harsh environments.

• Durable Hauling Cord
  Supplied with 8 mm cord for a comfortable and secure grip. The 1.5 m version allows full arm-length reach without excessive slack, improving control during operation.

• Certified as PPE
  All integrated components meet relevant PPE standards and function as a single rated connection, simplifying setup and reducing the number of components required.

Product Specifications

• Mechanical Advantage: 5:1
• Cord Diameter: 8 mm
• Available Lengths: 1.5 m and 5 m
• Materials: Alloy, stainless steel, and nylon
• Sheath: Cut and abrasion-resistant woven covering
• Loading: 100 kg Safe Working Load (SWL)
• Weight: 0.75 kg
• Conformity:
  • EN567 (rope clamps)
  • EN12278 (pulleys)
  • EN564 (accessory cords)
