IKAR IKHILL | 40mtr Temporary Horizontal Lifeline kit c/w Integrated Rescue Function

Product Description

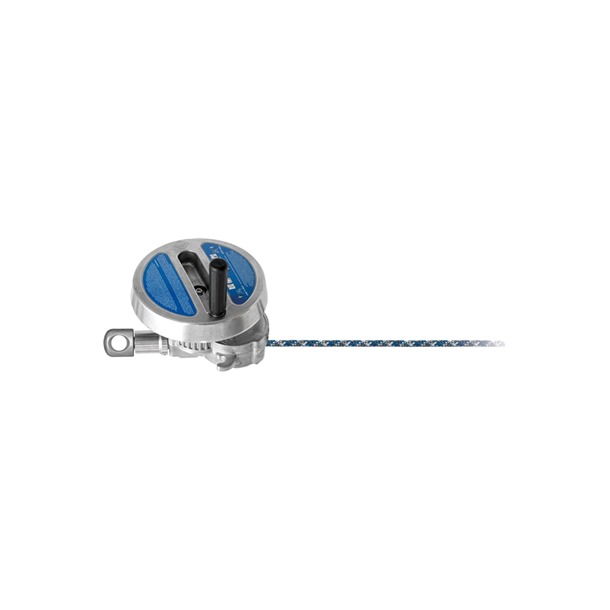

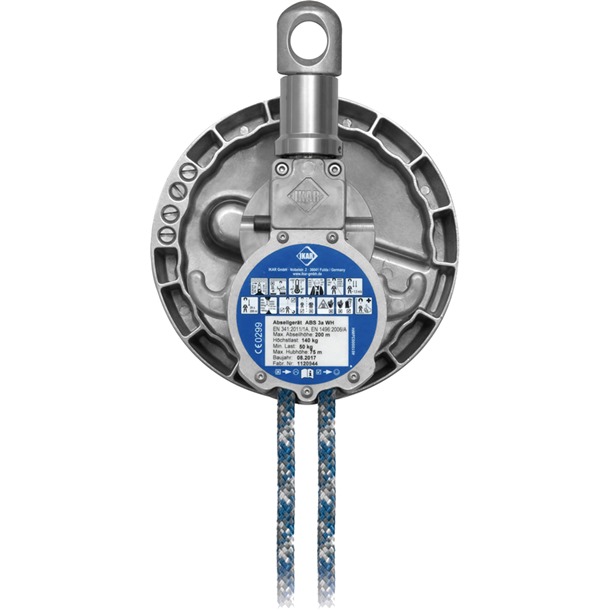

The IKAR ABS3aWH is a temporary horizontal safety line system designed to provide fall protection for workers operating in the horizontal plane, particularly where continuous anchorage is not available. This innovative system features a built-in rescue and descent function, allowing a rescuer to safely lower a fallen worker to the ground up to a maximum of 100 metres.

Equipped with an integrated pre-tension indicator and switchable reverse mechanism, the system ensures fast and precise tensioning. The clear tension indicator helps users achieve the correct pre-load force of 1.0 kN, enhancing the safety and functionality of the system during setup.

This 40-metre kit allows for a descent of up to 12 metres below the working platform when set with a 12-metre span. For descents exceeding 12 metres, additional configurations are available upon request. The system doubles as a hoisting and descent device, offering maximum flexibility for rescue operations.

Product Features

• Integrated controlled descent function allows quick and efficient rescue of a fallen worker.
• Temporary lifeline system for horizontal applications where continuous anchorage is unavailable.
• Built-in pre-tension indicator clearly shows when correct tension is achieved (1.0 kN).
• Switchable reverse mechanism for easy and accurate tensioning.
• Can be used as a descent device with hoisting capability.
• Allows lowering of a fallen person up to 100 metres.
• 40-metre kit permits descent of up to 12 metres below platform when set with 12-metre span.
• Supplied as a complete kit for quick deployment on-site.
• Available in multiple lengths (20m to 100m) to suit a variety of job site requirements.

Kit Contents (40m Configuration)

• 1x IKHLL40 Temporary Horizontal Lifeline (40m rope)
• 2x IKAB200 2m Anchorage Slings
• 1x IKV13 Connector
• 1x Kit Bag

Product Specifications

• Maximum span: 12 metres
• System capacity: 1 person
• Maximum descent distance: 100 metres
• Standard descent distance (40m kit): up to 12 metres
• Pretension force: 1.0 kN
• End loads: 9 kN
• Rope type: Kernmantle
• Rope diameter: 10.5 mm
• Kit weight: 7 kg
• Available kit lengths: 20 m to 100 m (custom lengths on request)
