NAIAD 16mm Pulley By C.A.M.P
£58.20 inc VAT
Product Purposes
This product is suuitbale for use in arboriculture applications.
Features
| Application Type: | Arboriculture |
| Brand: | C.A.M.P |
| CE/UKCA Marked: | Yes |
| Certification Supplied: | Declaration of Conformity |
| Certified to: | EN 1497:2007 |
| Material: | Aluminium |
| M.B.S: | 44kN |
| Product Colour: | Red |
| Suitable For: | 16mm Rope |
| Warranty: | 3 Years |
| Weight: | 280g |
Product Information
Engineered for high-demand environments, this multifunction pulley is designed to handle heavy hauling, complex mechanical advantage systems, and technical rescue operations. With a large high-efficiency sheave and multiple attachment points, it delivers exceptional performance and flexibility in the most challenging rigging scenarios.
The oversized main attachment point fits up to three karabiners, while an integrated bottom becket provides a convenient connection for additional components. Two side holes offer added versatility for redirects, progress capture setups, or positioning anchors. Its prusik-minding design allows compatibility with self-locking knots on both sides, making it a reliable component in advanced progress capture systems.
A large inner sheave, paired with self-lubricating bushings, ensures smooth and efficient performance in low-speed, light-load applications. Constructed from high-strength aluminum alloy with a stainless steel axle, this pulley is built to withstand rigorous use in the field.
Product Features
- Large, high-efficiency sheave delivers smooth, controlled operation in hauling and tensioning systems.
- Efficiency rating of 90 percent, optimized for use in high-friction or high-load mechanical setups.

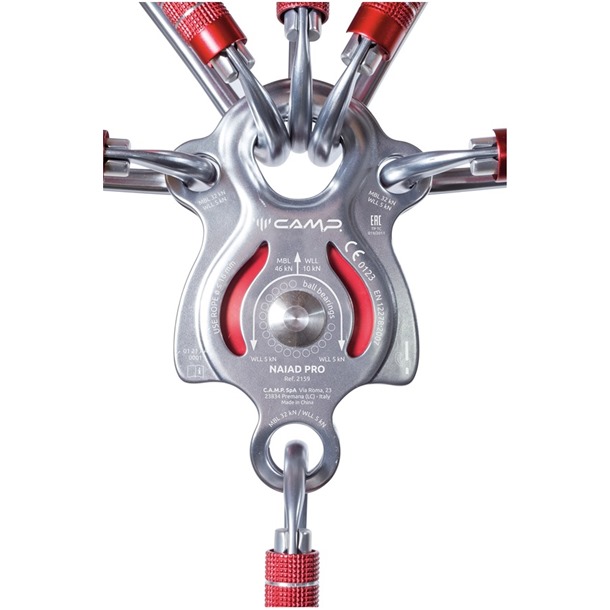

- Oversized main connection point accommodates up to three karabiners for maximum rigging flexibility.
- Integrated bottom becket allows direct connection of additional components for more complex pulley systems.
- Two side holes offer additional rigging or positioning options.
- Prusik-minding design ensures compatibility with progress capture knots on both sides of the sheave.
- Suitable for professional rope access, technical rescue, and heavy-duty mechanical advantage systems.
- Built for long-term use in demanding environments.

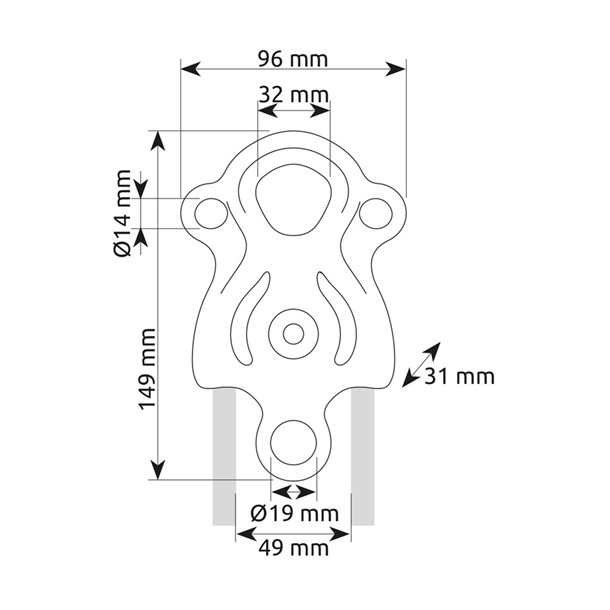

Product Specifications
- Rope compatibility: Accepts ropes up to 16 mm in diameter.
- Sheave diameter: 44 mm inner sheave.
- Efficiency: 90 percent.
- Breaking load: 44 kN.
Construction materials:
Body and sheave: High-strength aluminum alloy.
Axle: Stainless steel.
Bushings: Self-lubricating for smooth, low-maintenance operation.
Attachment options:
Main connection point: Fits up to three karabiners.
Becket: Integrated bottom becket for added rigging flexibility.
Side holes: Two auxiliary holes for redirects or positioning.
