20mtr Confined Space Tripod Kit | Tractel Tracpode

Product Information

The Tracpode is a versatile, temporary anchor point designed to safely support two operators, each weighing up to 150kg, including their equipment and tools. Additionally, it can serve as an anchor for lifting operations, with a load capacity of 500kg (this can be increased to 500kg when the strap is attached to the feet).

Due to its compact design, the Tracpode is ideal for use as a mobile anchor point in confined spaces, for lifting tasks, and during rescue operations. Constructed from lightweight aluminium, the Tracpode can be easily folded and transported in most vehicles, making it highly portable.

The head of the Tracpode includes 3 anchor points:

• 2x anchor points for fall arrest or evacuation systems (up to 150kg user weight)

• 1x anchor point for a Chainblock or Electric Hoist (up to 250kg) – this can be increased to 500kg when the strap is fitted to the feet

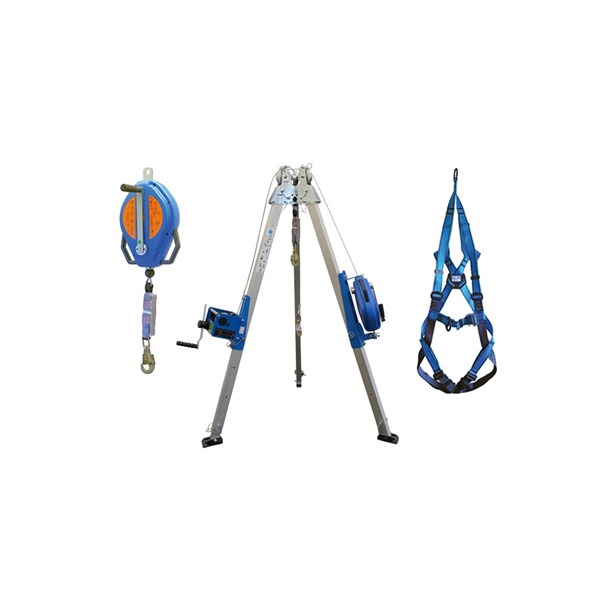

Kit Includes

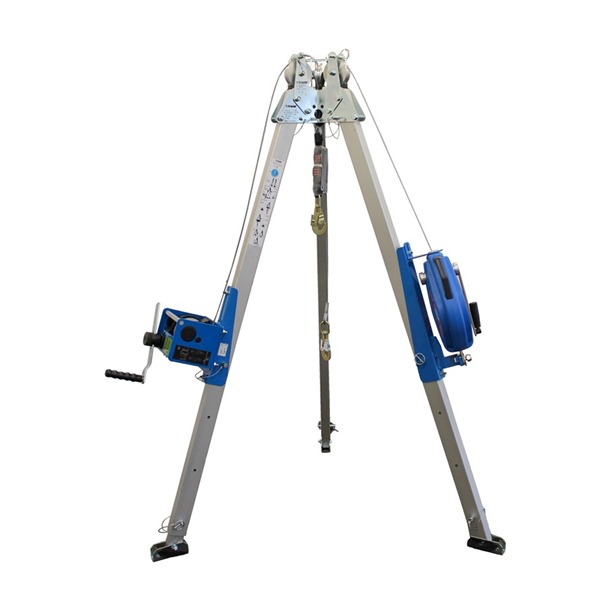

• Tracpode Tripod

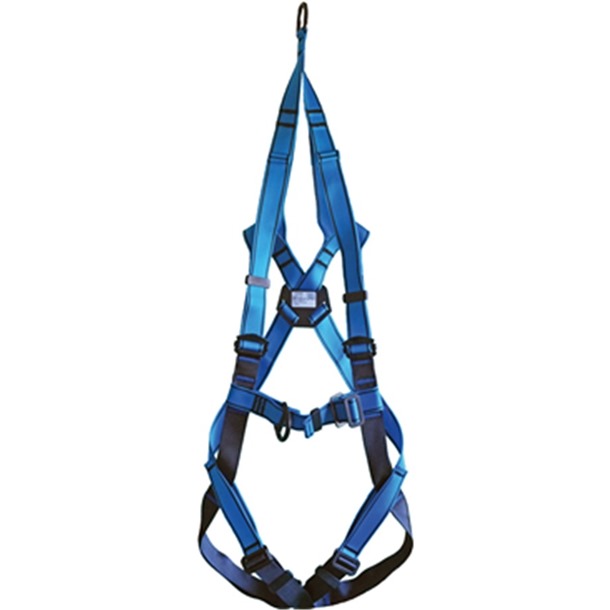

• HT22R Rescue Harness

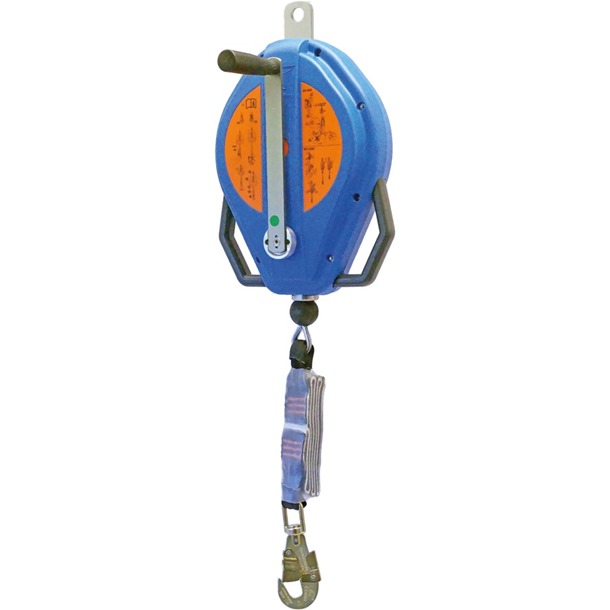

• Blocfor 20m Retrieval Block
• Bracket for Blocfor

Note: The CAROL HAND WINCH shown in the main picture is sold separately and is not included.

Product Features

• Adjustable height from 1.78mtr to 2.73mtr
• Leg distance adjustable from 1.03mtr to 1.58mtr, depending on height
• Leg length extendable in 20cm increments
• Tubular legs ensure rigidity and strength
• Locking pin and spring-loaded clips attached permanently to leg sections with small cables, ensuring all parts stay together
• Foldable system for easy transport
• Simple and quick installation

Product Specification

• Material: Tubular Aluminium
• Weight: 23kg
• Maximum User Weight: 150kg
• Conforms to EN Standard: EN 795
• Produced & Manufactured in Luxenbourg
