Multi Purpose Tripod & Gantry Equipped with Lifting Winch By G-Force

Product Overview

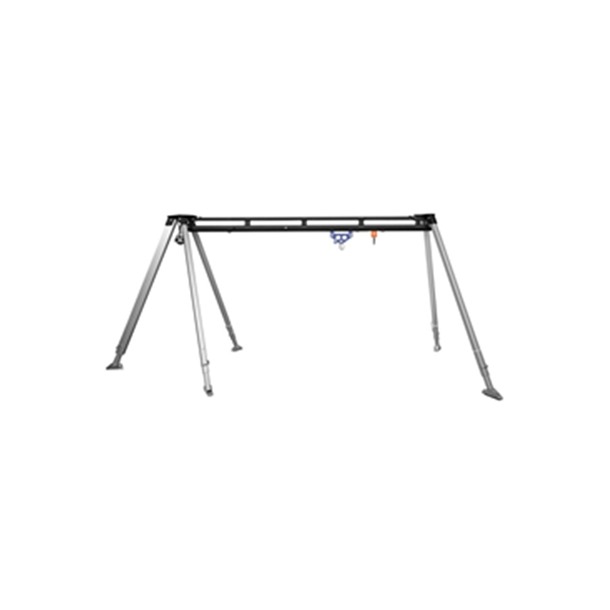

The TM12 is a versatile, heavy-duty tripod and gantry lifting system designed for safe and efficient lifting or lowering of materials in confined space or industrial environments. Engineered for strength, portability, and adaptability, the TM12 can be used in multiple configurations — as a complete tripod system, with a gantry beam, or as a standalone tripod for material handling tasks.

Included Components

• Main Tripod, Top Beam, and 2-Legged Support
• 1 x Double Trolley (mounted on beam)
• 1 x Single Trolley (mounted on beam)
• 1 x 1000 kg Alloy Bow Shackle
• 1 x RUP503-T Lifting Winch (available in 30 m or 50 m)
• 1 x Pulley (additional pulley sold separately)

Key Features

• Multi-Function Use:
  Can be deployed as a full tripod and gantry system or as a standalone tripod for lifting and lowering materials up to 1000 kg.

• Modular & Portable:
  Lightweight aluminium construction. The TM12 system breaks down into three main components, making it easy to transport and assemble.

• Adjustable Configuration:
  Fully adjustable in both height and length to suit different job site requirements.

• Improved Stability:
  Tripod feet feature gripping thorns for enhanced traction on slippery or uneven surfaces.

• Beam Safety:
  Fitted with safety locking pins to prevent unintended movement of the beam trolley during use.

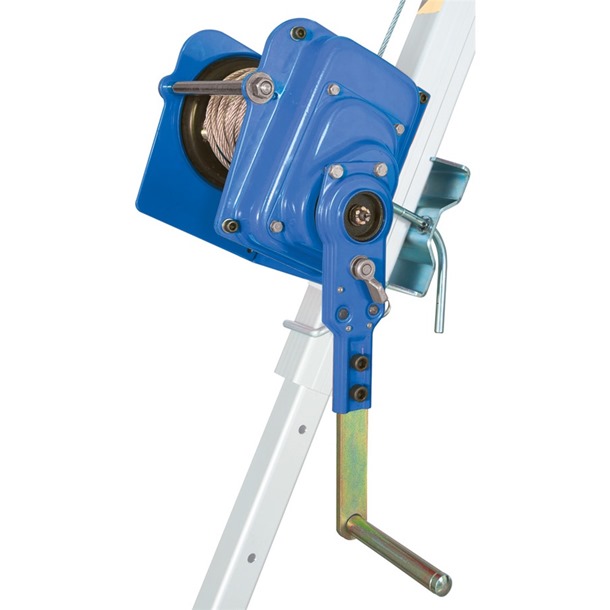

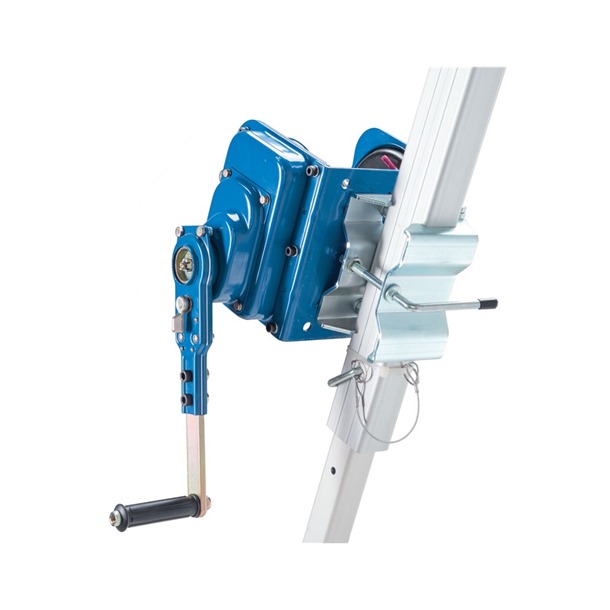

• Lifting Winch Options:

  • Available in 30 m or 50 m versions

  • Features 6.3 mm galvanised steel cable

  • Includes integrated braking system

  • Complies with EN 1496 Class B

• Tripod & Gantry Compliance:
• Conforms to EN 795 Class B (anchorage devices for fall protection)

Shipping Dimensions (Boxed)

• Length: 2540 mm
• Width: 330 mm
• Height: 340 mm
