Multi-Purpose Tripod & Gantry For Confined Space as well as Lifting & Rescue By G-Force

Product Information

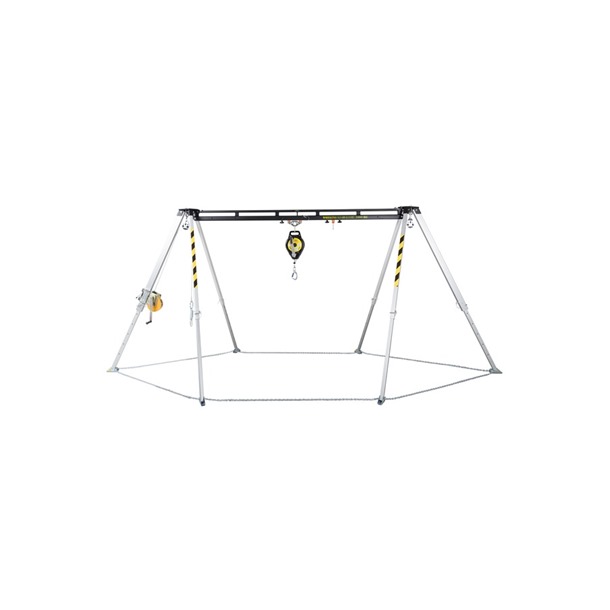

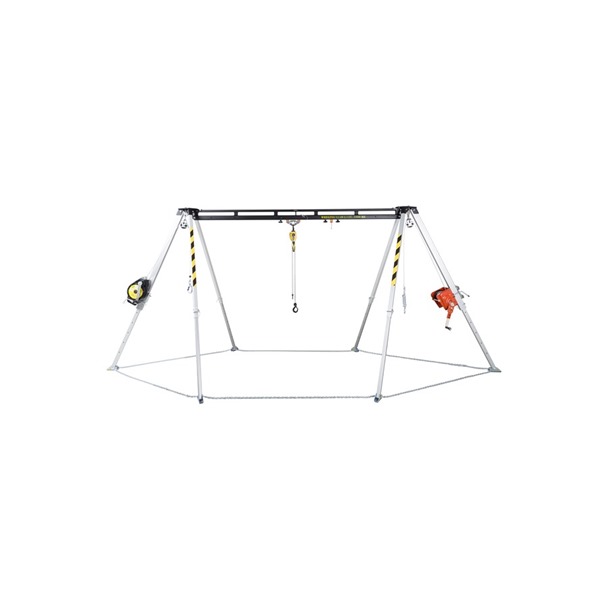

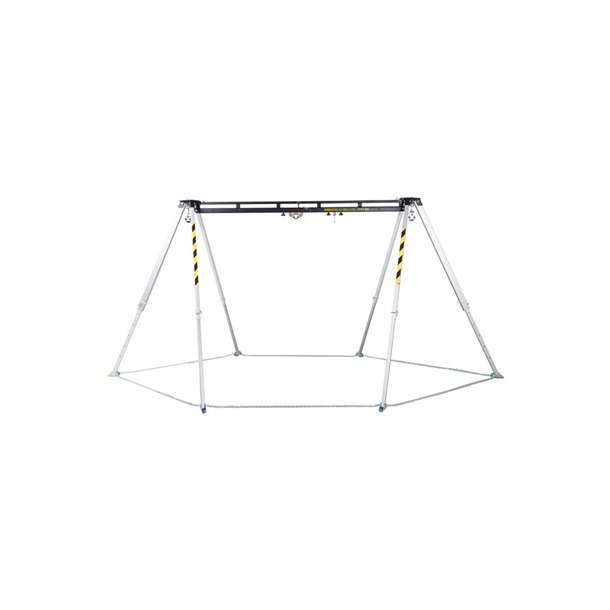

The TM12-T2 "HEXAPOD" is a versatile multi-purpose tripod and gantry system designed for confined space access, fall protection, and material handling. Built from lightweight aluminium, it supports man riding up to 140 kg and material lifting/lowering up to 1000 kg.

This modular system breaks down into three key components, making it highly portable and adjustable for on-site flexibility. It includes two main tripods and a top beam fitted with a double trolley and a single trolley, as well as a 1000 kg alloy bow shackle.

Accessories sold separately. Use with P10R Rescue Harness (not included).

Includes

• 2 x Main Tripods
• 1 x Top Beam
• 1 x Double Trolley (on beam)
• 1 x Single Trolley (on beam)
• 1 x 1000 kg Alloy Bow Shackle

Product Features

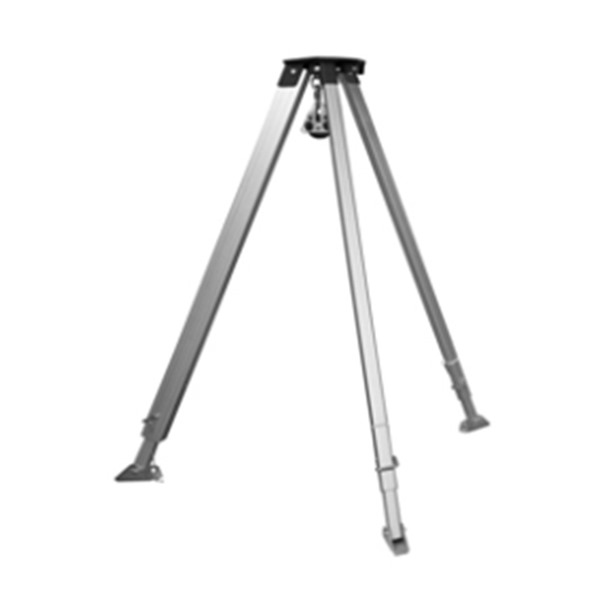

• Can be used in full gantry setup or as a standalone tripod
• Suitable for man riding (up to 140 kg) and material lifting (up to 1000 kg)
• Lightweight and portable — breaks down into 3 components for transport
• Fully adjustable in both height and length
• Tripod feet feature gripping thorns for better traction on slippery surfaces
• Beam trolley includes safety locking pins to prevent unintended movement
• Compatible with P10R Rescue Harness (supplied separately)
• 2-year warranty

Product Specifications

• Beam length: 2800 mm
• Height range: 1390–2210 mm
• Weight: 86 kg
• Shipping box dimensions: 2540 x 330 x 340 mm
• Material: Aluminium
• Max load (materials): 1000 kg
• Max load (man riding): 140 kg
• Max users (fall protection): 2 persons
