Tripod & Gantry Multi Puropse Equiped with a Rescue Winch

Product Information

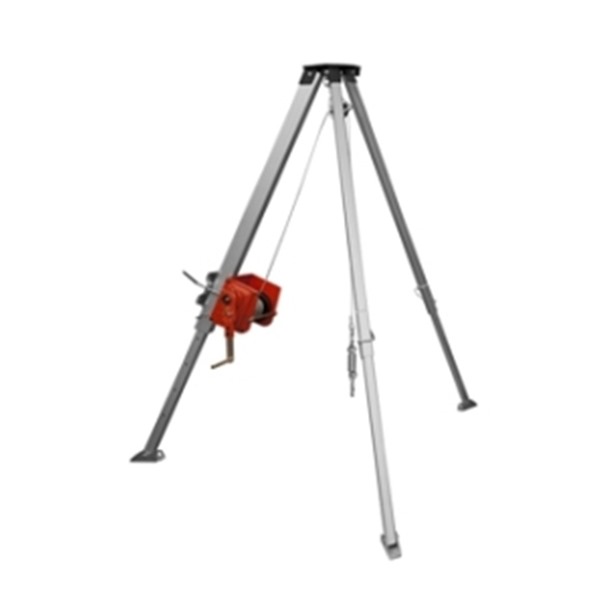

The G-Force TM12 Tripod System is a modular and adaptable rescue and access solution, designed for confined space operations, man-riding, and rescue tasks. It features a robust yet lightweight design that breaks down into three key components for ease of transport and setup. Whether used in its complete form, as a gantry system, or as a standalone tripod, the TM12 delivers outstanding flexibility and safety for vertical entry and confined space applications.

Includes

• Main Tripod, Top Beam, and 2-Legged Support
• 1 x Double Trolley (mounted on beam)
• 1 x Single Trolley (mounted on beam)
• 1 x 1000 kg Alloy Bow Shackle

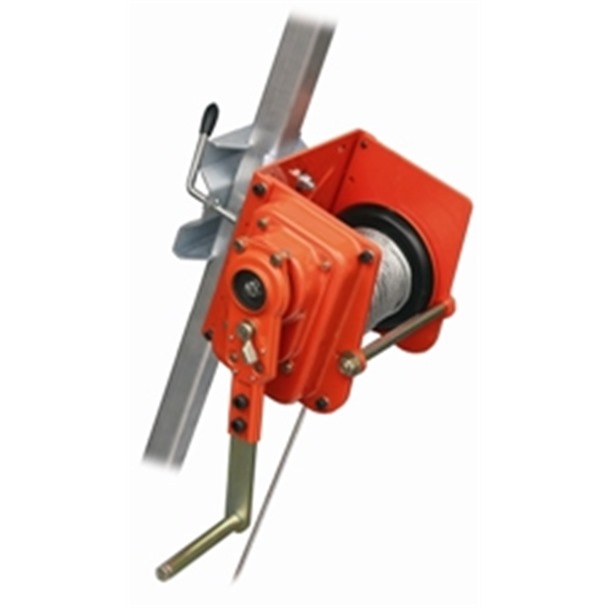

• 1 x RUP503 Rescue Winch (30m or 50m) with Pulley
• Note: Only one pulley is supplied; a second pulley is optional and sold separately.

Key Features

• Suitable for man-riding up to 200 kg (not for lifting materials)

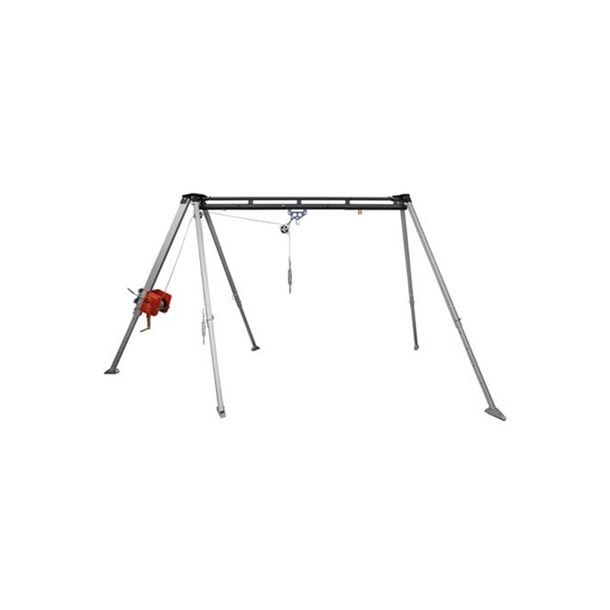

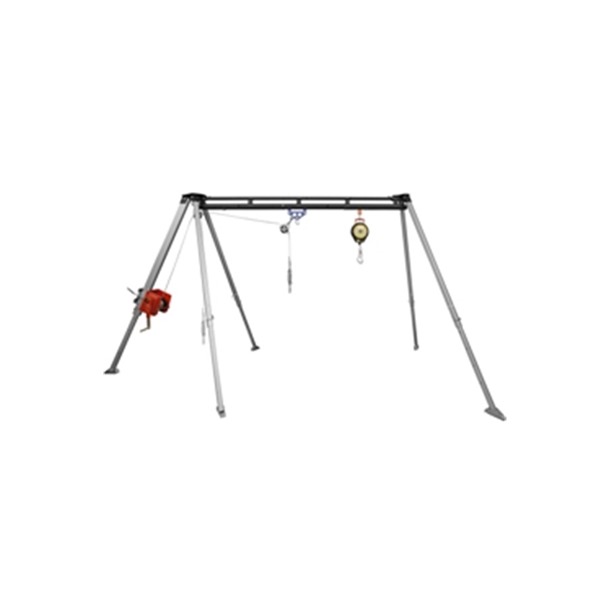

• Can be used as a complete system, gantry, or tripod for confined space entry
• Lightweight and portable – breaks down into 3 main components for easy transport
• Fully adjustable in both length and height
• Gripping thorns on tripod feet for improved traction on slippery surfaces
• Safety locking pins secure the beam trolley during operation
• Compatible with P10R Rescue Harness (sold separately)
• Rescue winch available in 30m or 50m lengths
• 6.3 mm galvanised cable with integrated braking system

Specifications

• Rescue Winch: RUP503 (30m or 50m cable options)
• Cable: 6.3 mm galvanised steel with automatic brake
• Maximum Rated Load: 200 kg (for personnel use only)
• Standards:
• EN795:2012 Class B (Anchorage device)
• EN1496:2006 Class B (Rescue lifting device)

• Shipping Box Dimensions:

  • Length: 2540 mm

  • Width: 330 mm

  • Height: 340 mm
