Heightec MS01 | CHRYSALIS Rescue Stretcher

Product Description

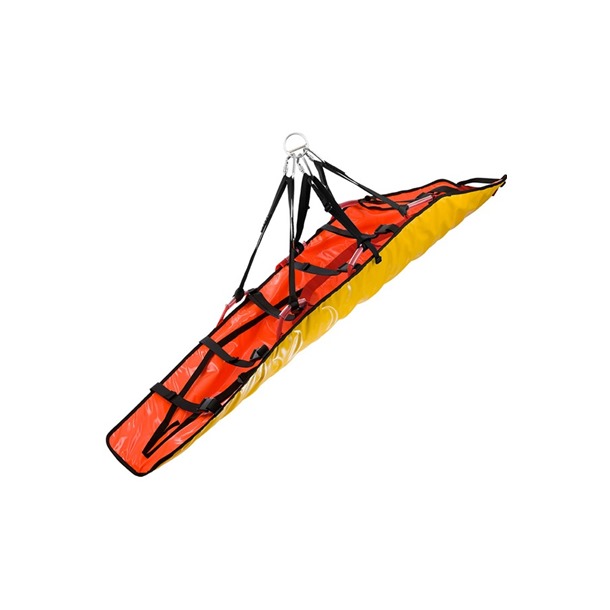

The CHRYSALIS rescue stretcher is a robust and versatile solution for vertical and horizontal casualty lifting, designed specifically for rescues from confined, exposed, or elevated environments. Engineered with integral body harnessing and tested under dynamic conditions, it delivers outstanding casualty protection, handling, and reliability during demanding rescue operations.

What makes the CHRYSALIS unique is its built-in full body restraint harness, certified to the dynamic performance requirements of EN 361, ensuring the casualty is secured at all times—whether suspended vertically or horizontally. Constructed from reinforced coated fabric, it offers exceptional strength-to-weight ratio, high abrasion resistance, and long-term durability in the harshest environments.

Product Features

• Dual Lifting Capability
  Designed for both horizontal and vertical lifting, with an integrated support stirrup and single lifting point for vertical rescues.

• Integrated Casualty Harness
  Includes a full body restraint harness, unique to the CHRYSALIS, that conforms to EN 361 standards for dynamic fall arrest with a 125 kg test mass. The harness remains connected to lifting points in all positions for total casualty security.

• Quick and Efficient Application
  Features a quick buckle system for fast fastening and a flat-stored harness that requires minimal casualty movement during fitting—ideal for critical response scenarios.

• Secure and Adjustable Restraint System
  Equipped with six patient restraint straps and a dedicated head restraint system, all aligned for rapid fastening during emergencies.

• High Durability Outer Case
  The high-visibility outer shell is abrasion-resistant and waterproof, ensuring long-term protection of both casualty and equipment.

• Compact and Portable Design

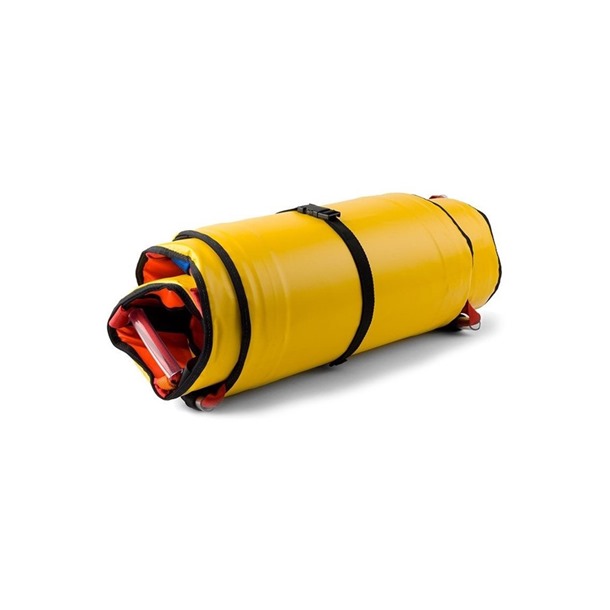

  Rolls up neatly for transport and storage in the included KARI 50 durable PVC bag with carry straps.

• Replaceable Components
  Includes lifting bridle. Replacement stretcher bridle available separately for ongoing service and maintenance.

Product Specifications

• Lifting Capability: Horizontal and vertical (with single lift point and support stirrup)
• Harness Certification: EN 361 – Full Body Fall Arrest (125 kg dynamic mass)
• Static Load Rating: 260 kg SWL (Factor of Safety 10:1)
• Dynamic Fall Test: 4 m fall with 125 kg mass
• Straps:
• 6 patient restraint straps
• 1 head restraint system
• Outer Shell: Reinforced coated fabric, high visibility, abrasion-resistant
• Interior: Removable stiffening sheet
• Storage: Supplied rolled in KARI 50 PVC bag with carry straps
• Weight: 9 kg
• Conformity: 93/42/EEC (Class I Medical Device)
