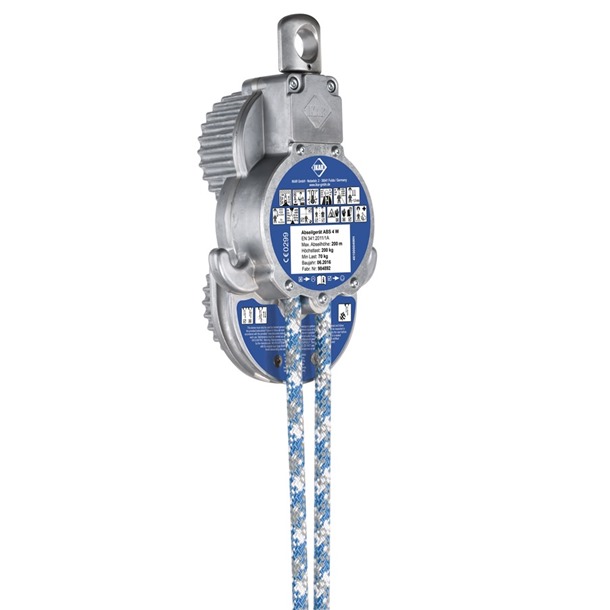

IKAR ABS4W | Controlled Decent Unit With Lift/Lower Mechanism

IKAR ABS4W | Controlled Decent Unit With Lift/Lower Mechanism

Reference: IKAR-ABS4W20
Only
£802.50 inc VAT

Product Purposes

Cherry Picker
Cherry Picker

This product can be used while working on a mobile elevating work platform (MEWP) such as a cherry picker.


Scroll to see more >

Controlled Descent Device with Automatic Speed Regulator – 2 Person Use

Product Description
This controlled descent device is engineered for safe and efficient evacuation or rescue operations involving one or two people. Certified to EN341 and EN1496, it features an automatic speed regulator housed within a robust aluminium body, and allows for a smooth and controlled descent. The device includes friction braking horns on the housing for optional manual speed control, and is designed to work with a 10.5mm kernmantle rope lifeline.

Ideal for vertical rescue scenarios, tower work, or emergency escape from elevated structures, this system ensures compliance, reliability, and high performance. The swivel eye anchor point allows flexible installation, and deviation points are integrated into the housing to assist with rope guidance and positioning.

Product Features

  • Certified to EN341 and EN1496
  • Suitable for two-person use
  • Automatic speed regulation for controlled descent
  • 10.5mm kernmantle rope lifeline running through aluminium housing
  • Friction braking horns allow manual speed control if needed
  • Aluminium double-action hooks fitted to both ends of the rope
  • Swivel eye anchor attachment point (ø16mm)
  • Integrated deviation points on the housing
  • High-performance lowering system with extended operational life
  • Compatible with rope lengths from 20 to 100 metres
  • Rope complies with EN 1891:1998/A (KMS 105)

Product Specifications

  • Nominal load: 200 kg
  • Minimum load: 70 kg
  • Proof load (EN341): 250 kg
  • Proof load (EN1496): 300 kg
  • Static proof load: 20 kN
  • Maximum descent height: 200 metres
  • Maximum descent speed: 1.5 metres per second
  • Descent capacity at nominal load (200 kg): 3800 metres
  • Descent capacity at minimum load (70 kg): 11,000 metres
  • Rope type: 10.5mm kernmantle
  • Available rope lengths: 20mtr, 30mtr, 40mtr, 50mtr, 60mtr, 100mtr
