10mtr ESD Fall Arrest Block | Tractel Blocfor

Product Information

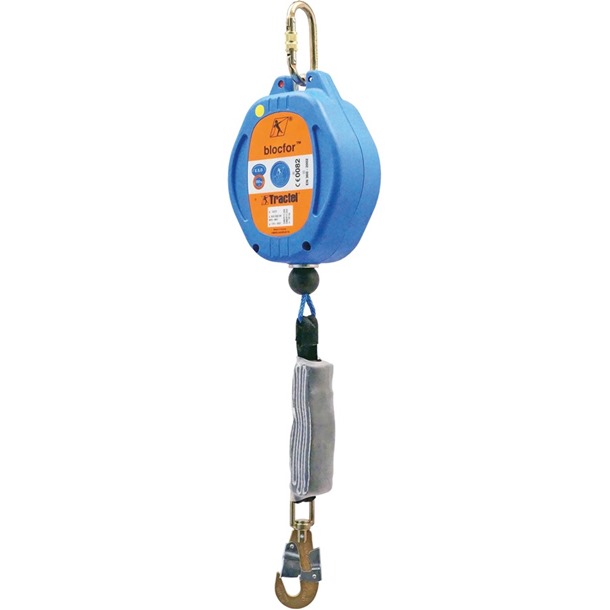

The Blocfor 10 ESD 150kg is a compact, high-performance automatic fall arrest device designed for enhanced user safety during work at height. Equipped with advanced ESD (Extremity System Dissipator) technology, it ensures that the impact force transmitted to the user remains below 600 daN, even in the event of a fall when the webbing is fully extended.

This system is ideal for use in environments such as terrace roofs, edges, or elevated structures, where reliable fall protection is critical. It can be used in vertical applications or at an angle of up to 20° from the vertical, and is also suitable for horizontal use without the need for a lanyard between the strap and the harness.

Product Features

• High-capacity rated for users up to 150kg
• Safe for use on sharp edges with a curve radius as low as 0.5mm
• Integrated ESD technology absorbs energy and reduces fall arrest forces
• Smooth, flexible unwinding system ensures ease of movement
• Instant locking mechanism activates in the event of a fall, minimizing fall distance
• Can be used vertically, at a 20° deviation, or horizontally without a lanyard
• Designed for use on terrace roofs and edge-based applications
• Lightweight and compact for ease of use and transport
• Includes an integrated fall indicator for easy inspection
• Housed in durable ABS fibre-reinforced polyamide casing
• Fitted with a standard M47 swivel connector at the shock absorber end

Product Specification

• Material: Plastic
• Weight: 4.9kg
• User Capacity: Up to 150 kg
• Length: 10 meters
• Connector: M47 swivel connector
• Conforms to EN Standard: EN 360
• Produced & Manufactured in Luxembourg

Usable Configurations:

• Vertical use
• 20° deviation from vertical
• Horizontal use without lanyard
