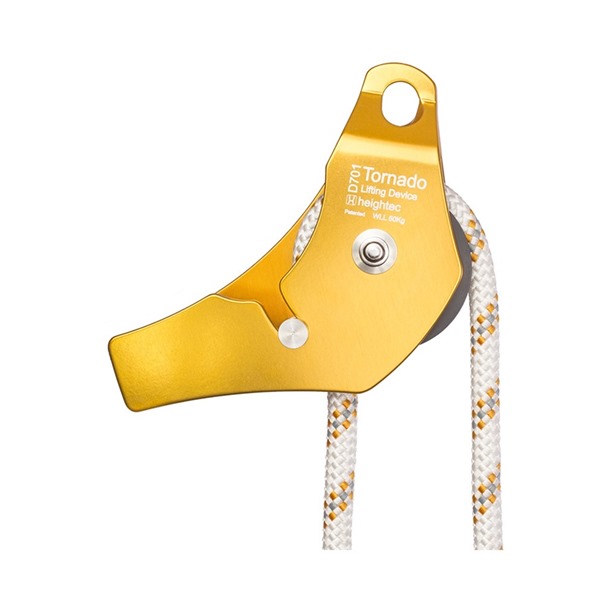

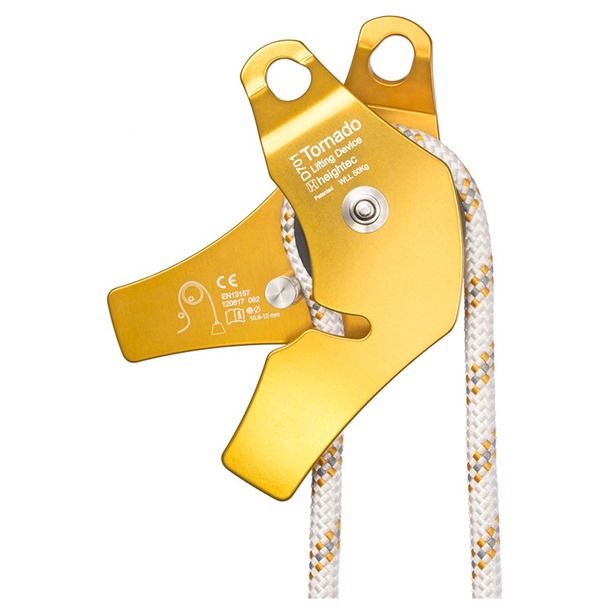

Heightec D701 TORNADO | Lifting & Lowering Device

Product Description

The TORNADO is a compact and highly efficient lifting and lowering device designed for controlled movement of light to medium loads. Ideal for use in rescue, work-at-height, and rope-based operations, it integrates a sealed one-way bearing system that enables smooth lifting with minimal friction and secure lowering with automatic locking.

When lifting, the main cam rotates freely, functioning as a pulley to reduce resistance. During lowering, the cam locks to provide controlled descent. The rope can be installed while the device is connected to the anchor point, minimizing the risk of dropping.

Lightweight, reliable, and easy to operate, the TORNADO is a valuable addition to any lifting or rope access system.

Product Features

• One-Way Bearing Cam: Allows smooth lifting and automatic locking during lowering
• Controlled Lifting and Lowering: Simple and safe operation—pull the tail to lift; raise the device to lower
• Compact and Lightweight: Ideal for portable lifting systems in confined or elevated environments
• Pulley Function: Operates with low friction for efficient hauling
• Safe Load Handling: Designed for precise load positioning and movement
• Backup for Endless Loop Systems: Suitable for use as a backup in manual hauling setups
• Versatile Use: Can be integrated into compound pulley systems to improve mechanical advantage
• Tool-Free Rope Installation: Rope can be loaded while device is anchored
• Anodised Aluminium Construction: Durable and corrosion-resistant finish
• Locks When Released: For added safety during lowering operations

Product Specifications

• Rope Compatibility: 10.5 – 12 mm kernmantle rope
• Material: Stainless steel, aluminium, and nylon
• Working Load Limit: 50 kg
• Weight: 0.652 kg
• Tested Load (EN Mass Test): 50 kg
• Conformity: CE certified to EN 13157
• Applications: Raising, lowering, positioning of loads; backup in hand-haul systems; compound pulley setups
