Mobile Anchor System For Confined Spaces | TRACTEL Tracrod
£771.30 inc VAT
Product Purposes
This height safety product is specifically designed for use in confined spaces such as wells and drains.
Features
| Brand: | Tractel |
| CE/UKCA Marked: | Yes |
| Certification Supplied: | Declaration of Conformity |
| Product Colour: | Blue |
| Product Colour: | Stainless Steel |
| Certified to: | EN 795 |
| Country of Origin: | Luxembourg |
| Inspection Period (From Date of first Use): | 12 Months |
| Material: | Tubular Aluminium |
| Maximum User Weight: | 150kg |
Product Information

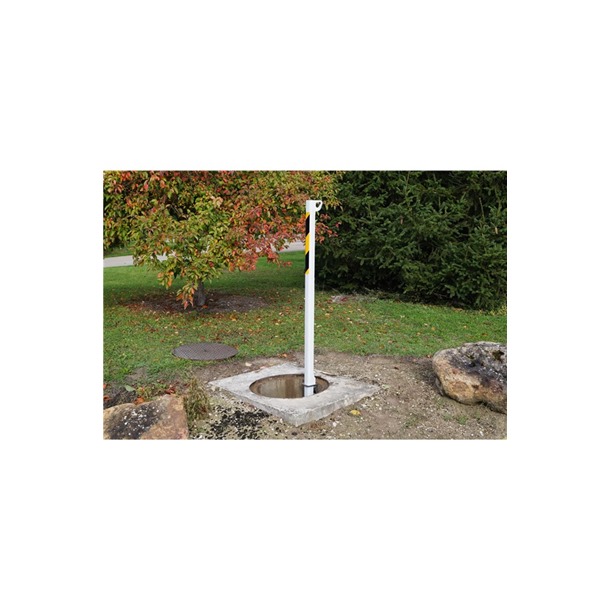

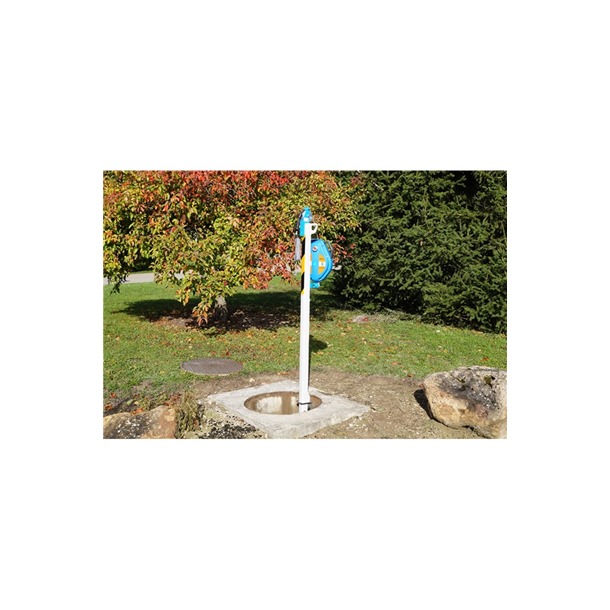

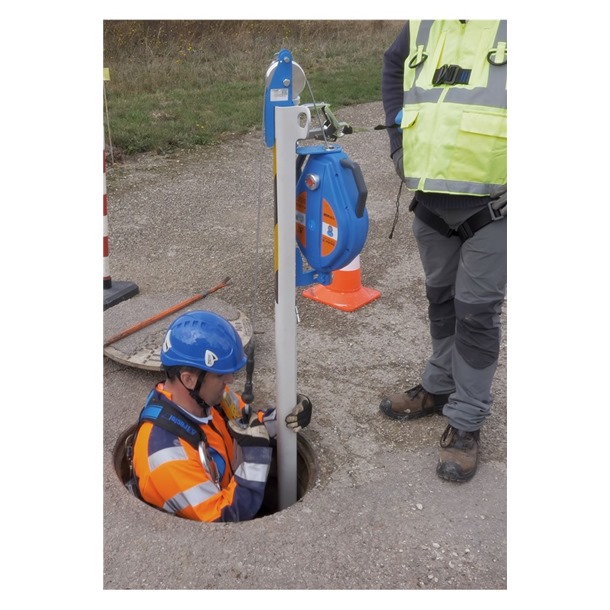

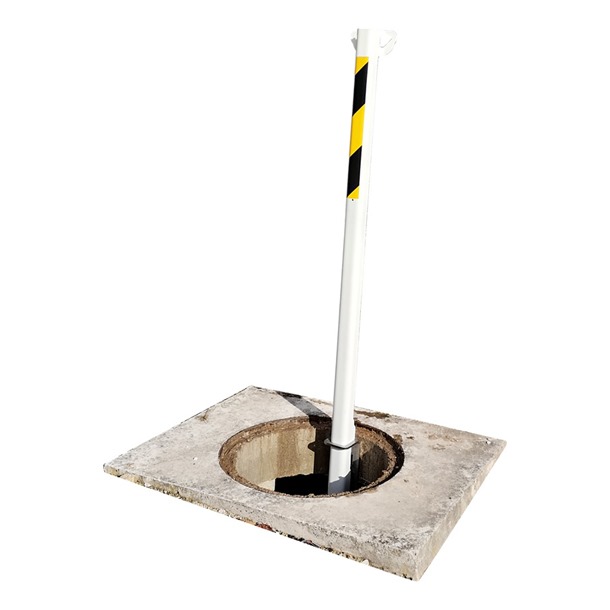

The Tracrod is a compact, lightweight, and portable anchor point designed for safe vertical access via manholes and other confined spaces. Supporting two users (up to 150kg each including harness and tools), it offers a working height of 1.5mtrs, making it an ideal solution for tasks involving regular entry into confined areas such as sewers, pipelines, and underground chambers.

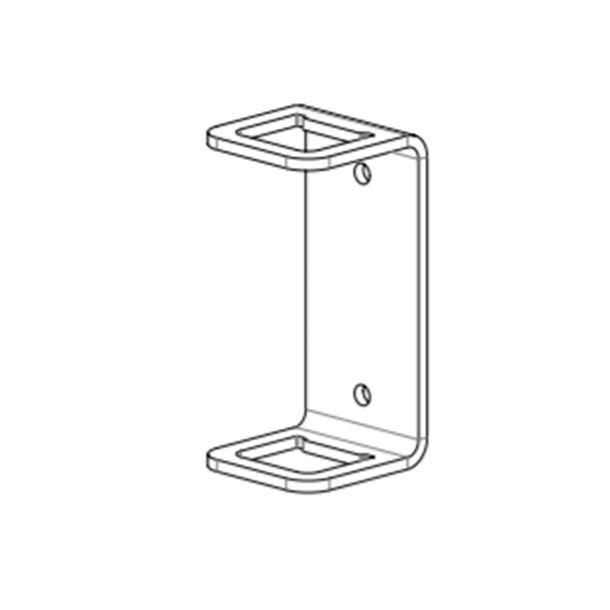

This system is particularly well-suited for operations requiring access to multiple identical locations. Stainless steel bases are permanently installed at each site, allowing the lightweight aluminum rod to be transported easily between them and set up in seconds.

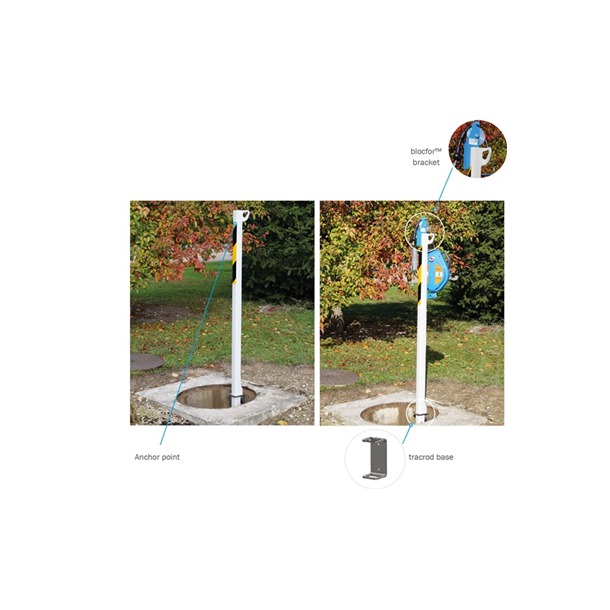

The Tracrod simply slots into the base, which is securely fixed in place using chemical anchors. Its head features two integrated anchor points, ensuring a secure and compliant anchoring system for fall arrest and rescue equipment.

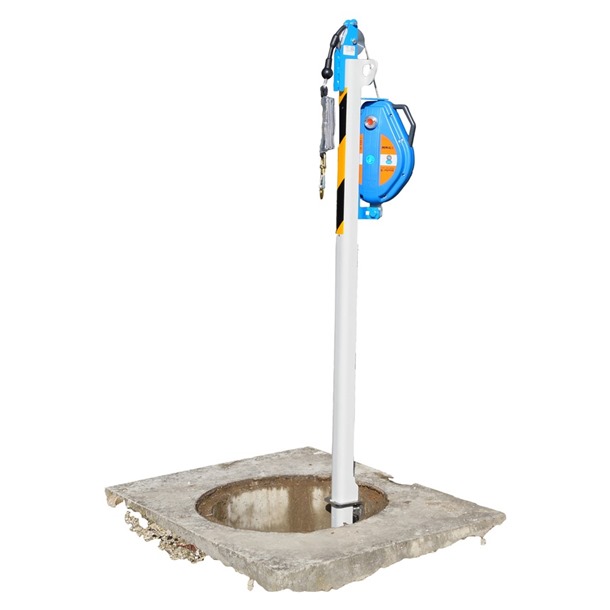

Additionally, the Tracrod can be enhanced with a bracket and Blocfor Fall Arrest Block with a Recovery Winch for improved safety and functionality.
Product Features
- Allows two operators (up to 150kg each) to work safely at height
- Certified to EN 795A and TS16415 standards for multiple-user systems
- Strong tubular aluminum design offers high stiffness and strength

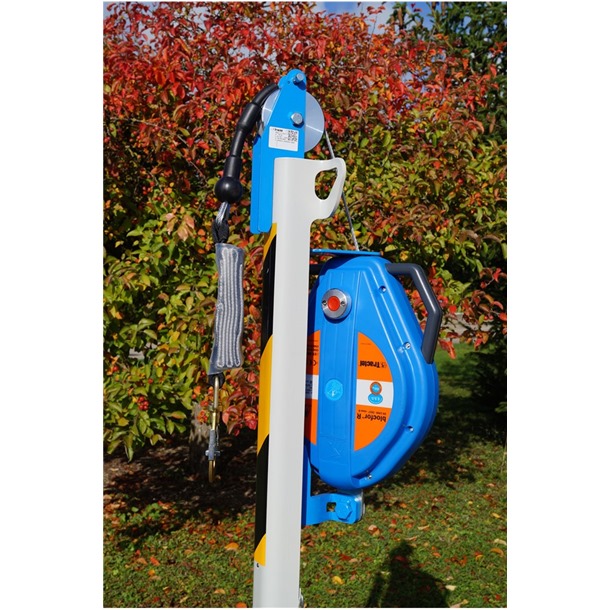

- Can be equipped with a bracket for Blocfor 20R or 30R fall-arrest devices
- Bracket installs or removes in seconds for quick adaptation
- Functions as a certified anchor point for fall arrest and rescue systems
- Compact size (1.76mtrs) and low weight (5.5kg) for easy handling and transport
- Made entirely from corrosion-resistant materials for long-term durability in humid environments
- Easy installation using 12mm chemical anchors—no special tools required
Product Specification
- Material: Aluminum rod, stainless steel base, all corrosion-resistant
- Weight: 5.5kg
- Working Height: 1.5mtrs
- User Capacity: 2 users, 150kg each (including PPE and tools)
- Length: 1.76mtrs
- Conforms to EN Standard: EN 795A, TS16415
Available Configurations
- Tracrod with base mount only
- Tracrod with base mount + Blocfor 20R (20m) + bracket
- Tracrod with base mount + Blocfor 30R (30m) + bracket
Optional Accessories
- Securing Plate (207368): Provides additional fixings and spacing (ideal for non-solid substrates like brick)
- Spacer Block (207358) – 5cm thick: Offsets the support mount for clearance from edges or obstructions
