Safety 7ft Rescue Tripod & 20mtr Fall Arrester With Rescue Winch
£1,463.98 inc VAT
£1,427.38inc VAT
Save 2.5%
£1,390.78inc VAT
Save 5%
£1,354.18inc VAT
Save 7.5%
Features
Brand: | Kratos Safety |
Certified to: | EN 795:2012 |
Country of Origin: | France |
Material: | Aluminium |
Max Work Load: | 500kg |
Product Colour: | Black & Silver |

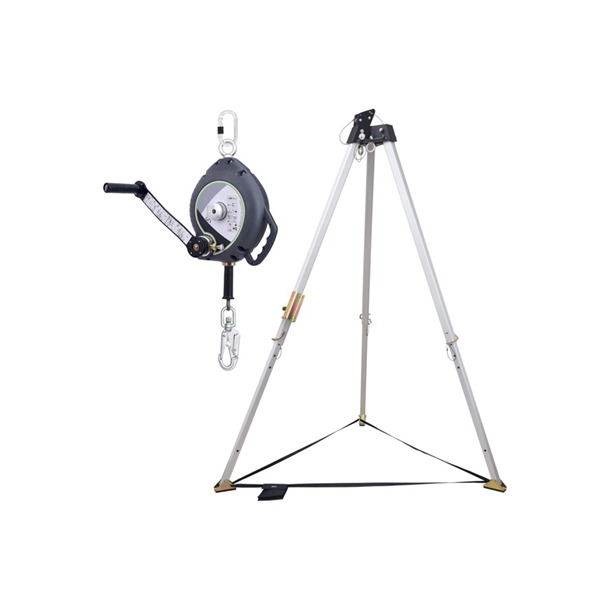

This comprehensive Kratos Safety Tripod and Winch Kit is designed for confined space entry, rescue, and retrieval operations. Built for reliability and ease of deployment, the kit combines a robust rescue tripod with a high-performance fall arrester and winch system.
Kit Includes:
1. Kratos FA6000100 7ft Rescue Tripod
Purpose-built for confined space access and rescue, the tripod provides a secure and stable anchorage point in vertical entry scenarios.
Product Specifications
Adjustable Height: 1.15 m to 2.15 m
Wheelbase: 1.08 m to 1.62 m
Maximum Load Capacity:
500 kg under the tripod head
250 kg on each leg
Weight: 14.3 kg
Conforms to EN Standard: EN 795:2012 Type B, ATEX Directive 2014/34/EU, EN 1808, Machinery Directive
Product Features
Two integrated pulleys at the tripod head aligned with the main leg to guide cables
Two auxiliary eye bolts for additional attachment points
Aluminium alloy cast head and legs for strength and portability
Steel support shoes with rubber soles for improved stability and grip
Anchorage point strength exceeds 12 kN
Integrated mounts for direct installation of compatible Kratos winches (models: FA6000320, FA6000330, FA6002320, FA6002320R)
Supplied with a durable transport/storage bag

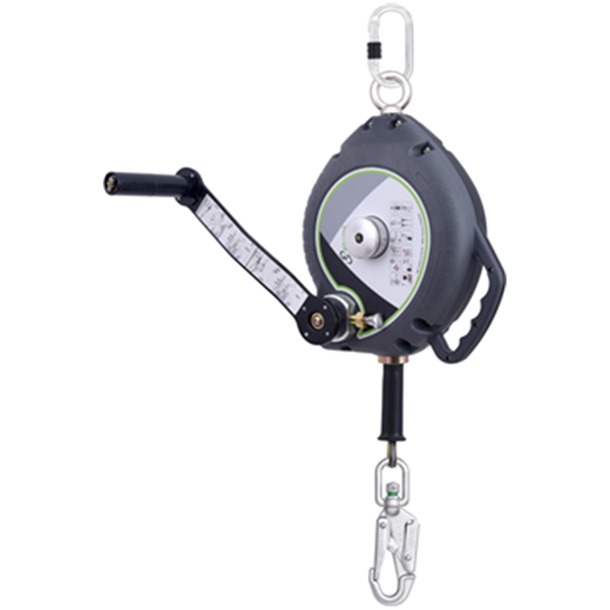

2. Kratos FA2040120 – 20m Fall Arrester with Integrated Rescue Winch
The OLYMPE retractable fall arrester includes a built-in rescue winch, making it ideal for vertical rescue and controlled descent.
Product Specifications
Cable Length: 20 metres
Maximum User Weight: 140 kg (vertical use)
Cable Diameter: 4.5 mm (galvanised steel)
Conforms to EN Standard: EN 360:2002, EN 1496:2017 Class B, ATEX Directive 2014/34/EU
Product Features
Integrated rescue winch for emergency lifting

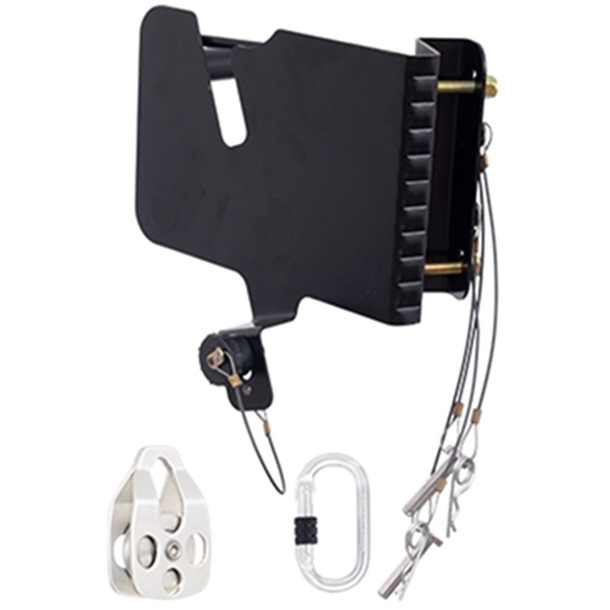

Includes an adapter kit for secure attachment to the tripod
Smooth cable retraction and controlled lifting/lowering during rescue
Produced & Manufactured in France
This kit offers a reliable, compliant, and ready-to-use system for safe confined space access and emergency retrieval operations.
