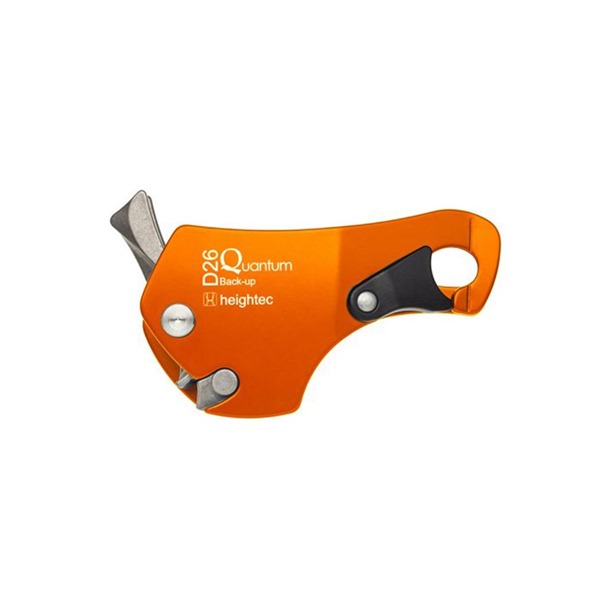

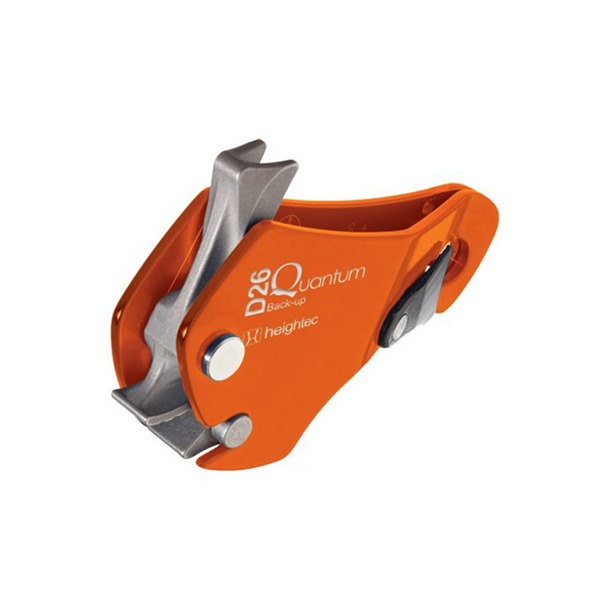

Heightec D26 QUANTUM | Rope Access Back-Up Device

Product Description

The QUANTUM is an advanced rope access back-up device designed to arrest a two-person fall without damaging the rope—even on older, dirty, or worn ropes. Unlike traditional single-point cam devices, the QUANTUM features a patented dual-point cam grip, distributing load across two rope contact points. This innovation prevents rope sheath damage, eliminates the need for a separate energy absorber, and ensures exceptional fall arrest performance with minimal slippage.

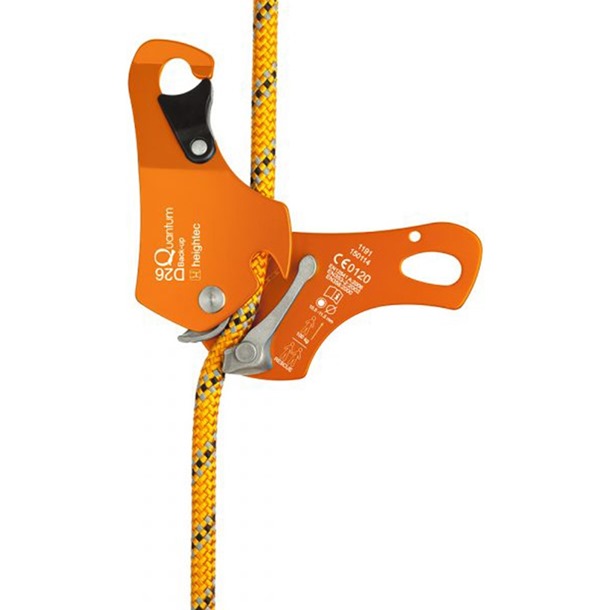

The integrated opening catch allows for rope insertion or removal without detaching the device from the lanyard—reducing the risk of dropped objects during rope transitions and simplifying operation during mid-rope manoeuvres.

Constructed from high-strength alloy with stainless steel friction surfaces, the QUANTUM delivers durability, consistent performance, and long service life. All internal components are fully visible, making inspection, cleaning, and maintenance straightforward.

Rated for use with lanyards up to 0.45 m (fall factor 2) or 0.9 m (fall factor 1), the QUANTUM is suitable for two-person rescue and requires no additional shock absorber, making it a reliable and compact solution for demanding rope access and rescue operations.

Product Features

• Two-Person Fall Arrest Capability: Certified for rescue and backup use in two-person operations
• Dual-Point Cam Grip (Patented): Prevents rope damage by distributing load over two contact areas
• Minimal Slippage During Arrest: Reduces fall distance while maintaining sheath integrity
• Safe Mid-Rope Attachment: Opening catch enables rope insertion/removal without detaching the device
• No Shock Absorber Needed: Integrated design eliminates the need for additional fall energy absorbers
• Versatile Compatibility: Works on all rope types, including older or dirty ropes
• Harness Attachment Options: Use with cowstail or short webbing
• Easy to Maintain: All components are visible and accessible for inspection and cleaning
• Durable Build: High-strength alloy with stainless steel friction surfaces for reduced wear
• Individually Marked: For asset tracking and traceability

Product Specifications

• Rope Compatibility: 10.5 mm – 11.5 mm diameter
• Material: Aluminium body with stainless steel friction surfaces
• Device Weight: 0.35 kg
• Working Load Limit (SWL):
• 100 kg (EN Mass Test)
• 100–200 kg operational range (suitable for two-person rescue)
• Maximum Lanyard Lengths:
  • 0.45 m (up to fall factor 2)
  • 0.9 m (up to fall factor 1)
• Standards & Conformity:
  • EN 353-2 – Guided type fall arrester on a flexible anchor line
  • EN 12841 Type A – Rope adjustment device for work positioning and fall arrest
