Heighttec P201 | CYCLONE Heavy Duty Pulley With Locking Cam

CYCLONE Heavy Duty Hauling Pulley (P201)

Product Description

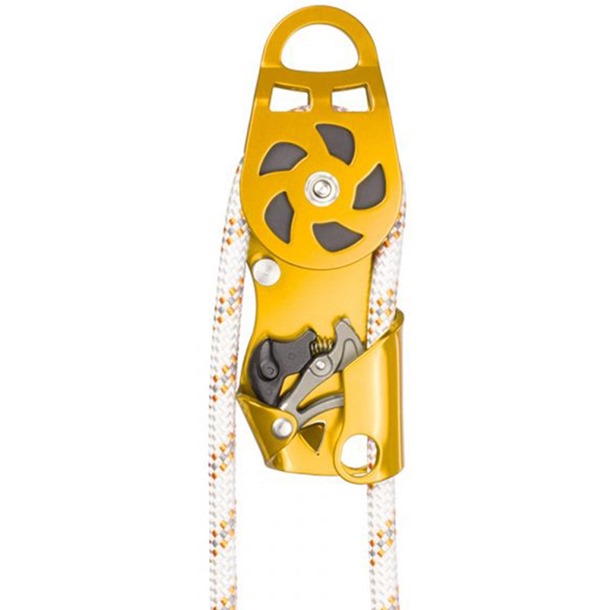

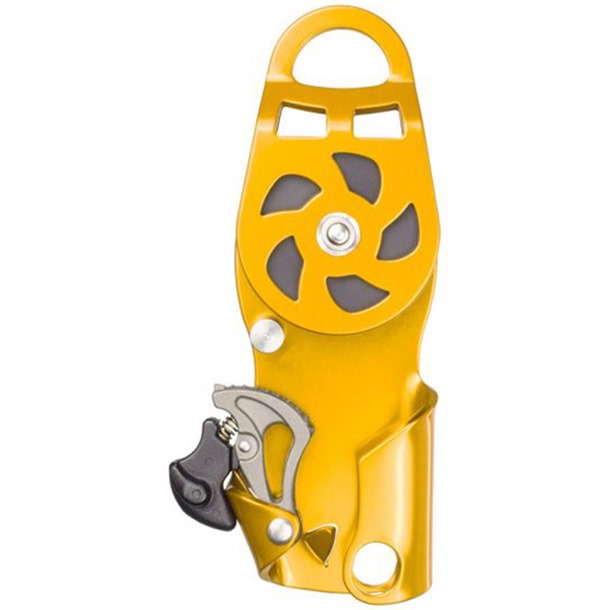

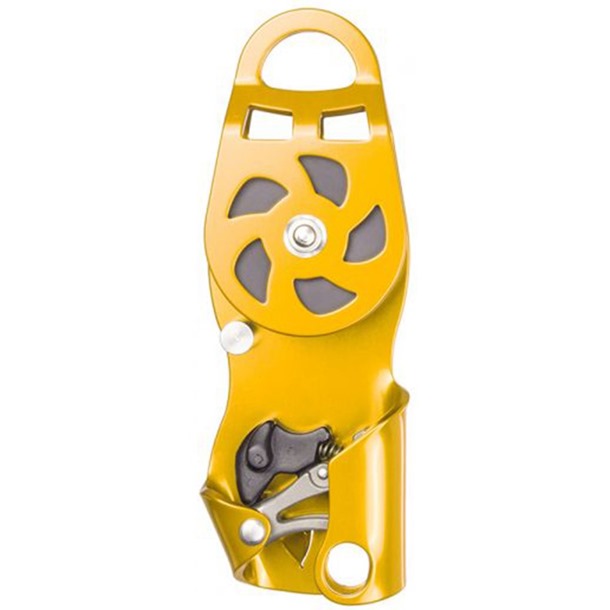

The Heightec CYCLONE (P201) is a high-strength heavy duty hauling pulley with an integrated locking cam, specifically designed to support equipment and material lifting in demanding industrial environments. Engineered for efficiency, reliability, and ease of use, the CYCLONE is ideal for technicians who require dependable performance during haul system operations.

Its innovative X-Cam locking mechanism provides superior rope grip without damaging or plucking the rope sheath, ensuring extended rope life and consistent function even in challenging conditions. Compact, lightweight, and robust, the CYCLONE is a practical choice for rigging tasks where safety and durability are critical.

Note: The CYCLONE is not certified for lifting persons.

Product Features

• Integrated Low-Friction Pulley
  Features a 50 mm pulley wheel designed to minimise friction during hauling, improving efficiency when moving equipment or materials.

• X-Cam Locking Mechanism
  The unique X-Cam design offers a high degree of grip on ropes in varied conditions, including ropes with damaged or ruptured sheaths. Unlike traditional toothed cams, it reduces rope wear and will not jam, even when loaded against knots.

• Industrial-Grade Construction
  Built with a lightweight alloy body, stainless steel cam, and durable nylon pulley wheel, providing strength and resilience for regular use in tough environments.

• Simple and Practical Design
  Compact and clean form factor allows for fast rigging and easy integration into complex haul systems.

• Safe Working Load
  Designed to support a 100 kg safe working load, making it ideal for equipment handling, material movement, and non-human lifting operations.

Product Specifications

• Rope Compatibility: 10.5 mm to 11.0 mm diameter
• Material: Alloy body, stainless steel cam, nylon pulley wheel
• Pulley Wheel Size: 50 mm
• Loading: 100 kg Safe Working Load (SWL)
• Weight: 0.365 kg
• Conformity: 2006/42/EC Machinery Directive
• Certification: Not rated for lifting persons
• EN Mass Test: Not applicable
