Lyon 30cm Stainless Steel Edge Guard Protector

LYON 30cm STAINLESS STEEL EDGE GUARD PROTECTOR

Versatile, compact and lightweight, the EDGE GUARD'S (patented) clever design stems from the unique knowledge and experience of the Lyon Equipment team

Made entirely from polished stainless steel with rope friendly contact surfaces, it's angular shapes on the end plates and load bearing surfaces are there to make the most efficient use of the forces created when a rope is loaded

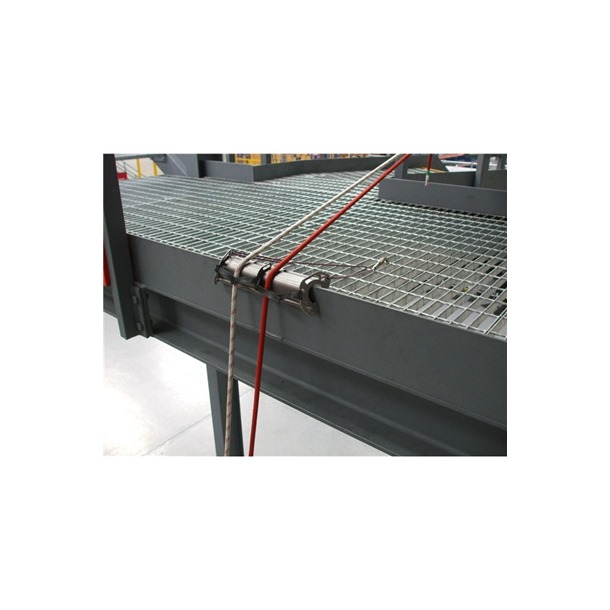

When used on plate edges such as steel toe boards, the four triangular "teeth" on the end plates grip the edge with a camming action

The more rope pressure applied to the EDGE GUARD the firmer onto the edge it locks, reducing it's potential for movement

The EDGE GUARD may be used with rope conforming to EN1891, of diameter 9mm to 13.5mm

Product features:-

• Versatile, compact and lightweight
• The angled end plates keep the rope and centre of gravity well within the footprint of the EDGE GUARD.  This makes it very stable in use
• When used on plate edges such as steel toe boards, the "teeth" on the edge plates hook onto the edge with a camming action
• The more rope pressure applied to the EDGE GUARD, the more it grips onto the edge, reducing it's potential for movement
• Each EDGE GUARD is supplied with adjustable securing cord and a spare length of securing cord
• Stainles steel body gives a long service life
• Operational width: 30cm
• Designed for two ropes
• Max weight use: 250kg

​
